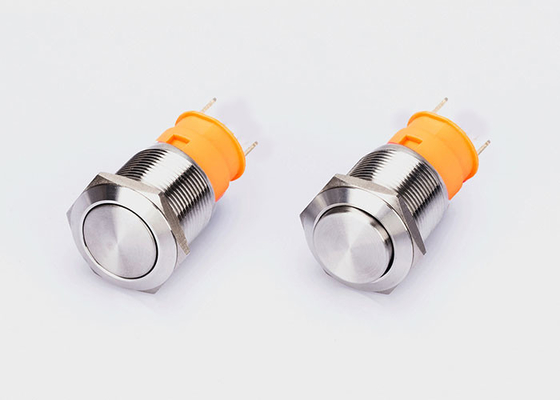

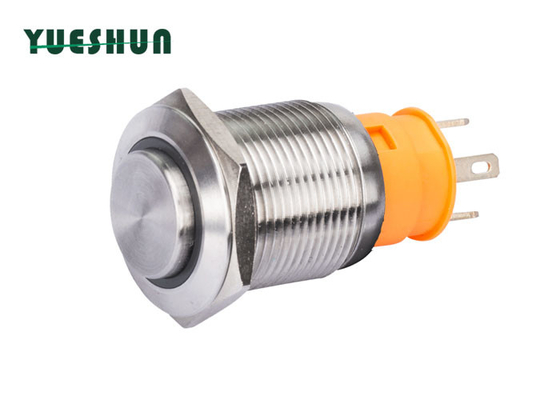

High Round Head Metal 19mm Panel Mount Push Button Switch 20A Heavy Load For Marine
Product Fatures
- 20A/250Vac dc push button switch,can be used in many device such as PC, Car, Boat, Elevator, Bank machine, etc..
- Its Shell Metarial is 316 Stainless Steel.Our factory can produce customized products according to customers' needs.
- stainless steel and waterproof pushbutton switches are the best choice for outdoor machinery, various additional electric machinery. The pushbutton is outstanding in materials and long life.
- Protection Degree: IP67, IK08. Waterproof Protection Can be Used in Wet or Dusty Environment.
Product Specification
|
Model Number |
LA19D-10E/S |
|
Mounting Hole |
19mm |
|
Max.Switch Rating |
Ith : 20A Ui : 25VAC DC |
|
Material |
Body Material: Stainless Steel |
|
Button Material: Stainless Steel |
|
|
Contact Material: Silver Alloy |
|
|
Base Material: PBT |
|
|
The Front Shape |
High Round Head |
|
Terminal Type |
Pin Termlmal |
|
Switch Operation |
Momentary |
|
Contact Configuration |
1NO |
|
Mounting Panel Thickness |
1-10 mm |
|
Operation Distance |
About 2.5 mm |
|
LED Parameters |
Led Type: Ring Type |
|
LED Color: |
|
|
Led Voltage: 3V 6V 12V 24V are available. |
|
|
LED Life: More than 40,000 hours |
|
|
Protection Level |
IP67 |
|
Operating Temp |
-20℃～+55℃ |
Size
