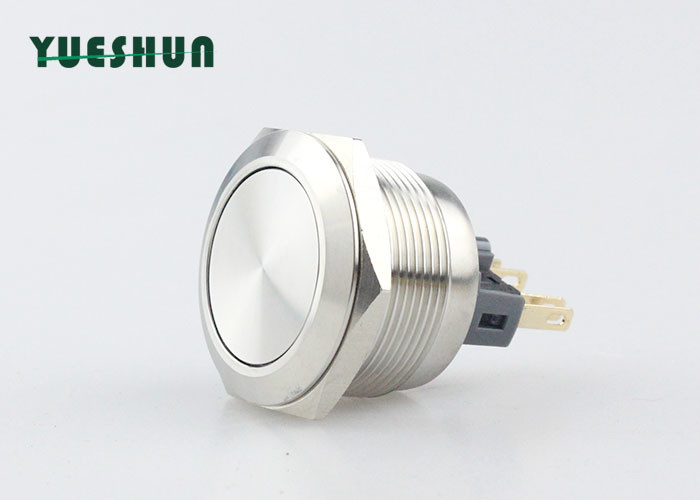

25mm Stainless Steel Panel Mount Push Button Switch Waterproof Metal Momentary Latching switches
Product Description
- Our push button switches are tested rigorously. Each piece is tested for appearance and clicking for at least 5 times before sending
- Latching type power buttons : Push it–on, push it again-off;
- Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.
- LED voltage: 3V 6V 12V 24V 36V 110V 220V 380V for choose.
Product Specification
| Model Number | JS25F-11 JS25F-22 |
| Mounting Hole | 25 mm |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Material | Body Material: Stainless Steel |
| Button Material: Stainless Steel | |
| Contact Material: Silver Alloy | |
| Base Material: PC | |
| The Front Shape | Flat Round Head |

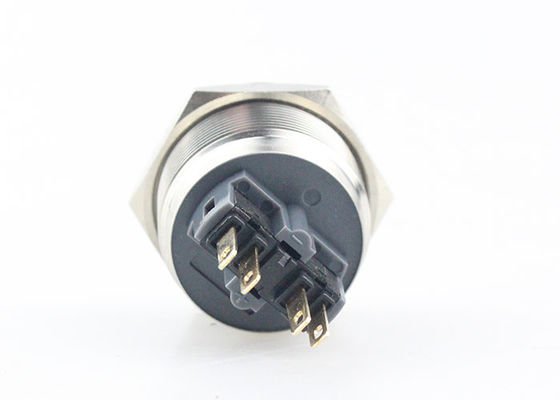

| Terminal Type | Pin Termlmal ( 2.8 * 0.5 mm ) |
| Switch Operation | Momentary or Latching are available |
| Contact Configuration | 1NO + 1NC or 2NO + 2NC are available |
| Mounting panel thickness | Momentary 1-8mm ; Latching 1-10 mm |
| Operation Distance | About 2.5 mm |
| Protection Level | IP67 |
| Operating Temp | -20℃～+55℃ |
Size
