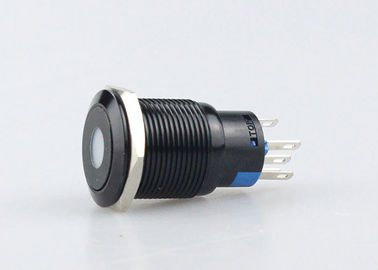

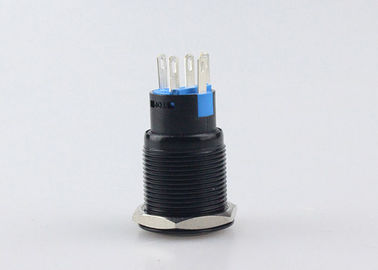

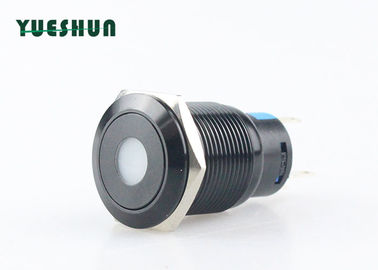

19mm Aluminum LED Panel Mount Push Button Switch Dot type 12 volt yellow orange on off switch
Product Fatures
- The illuminated pushbutton swithes are High-grade appearance and nice touch feeling, which is made of 304 stainless steel. If you need other materials please feel free to contact us.
- Latching/Self-locking button: Press the power on, release the hand, and keep the button still (light on)； Press the button again to make it pop upand disconnect the power (light off)；
- Momentary button: Press the power on, release the hand power on of off, the button spring to original position.
- The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out;
Product Specification
|
Model Number |
LA19F-11D/L |
|
Mounting Hole |
19mm |
|
Max.Switch Rating |
Ith : 5A Ui : 250V AC |
|
Material |
Body Material: Black Oxidized Aluminum |
|
Button Material: Black Oxidized Aluminum |
|
|
Contact Material: Silver Alloy |
|
|
Base Material: PBT |
|
|
The Front Shape |
Flat Round Head |
|
Terminal Type |
Pin Termlmal ( 2.8 * 0.5 MM ) |
|
Switch Operation |
Momentary or Latching are available |
|
Contact Configuration |
1NO + 1NC or 2NO + 2NC |
|
Mounting Panel Thickness |
1-10 mm |
|
Operation Distance |
About 3.1 mm |
|
LED Parameters |
Led Type: Dot |
|
LED Color: |
|
|
Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V are available. |
|
|
LED Life: More than 40,000 hours |
|
|
Protection Level |
IP67 |
|
Operating Temp |
-20℃～+55℃ |
Size
