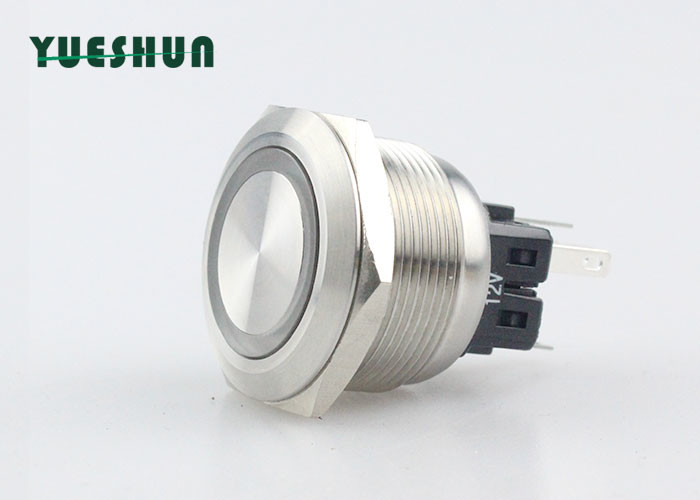

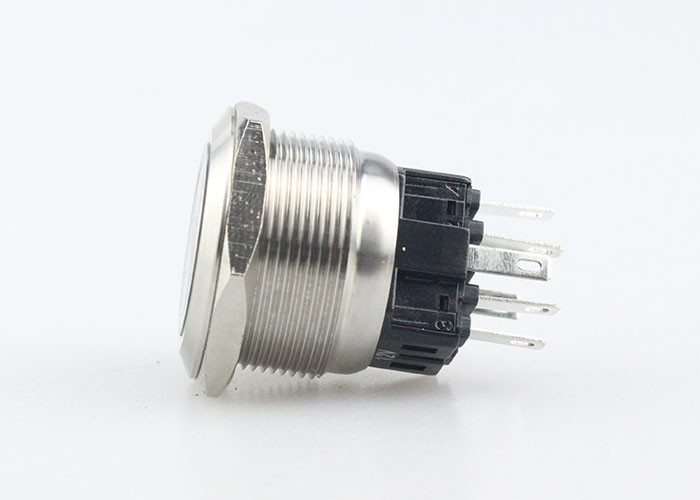

25mm Ring Symbol led Panel Mount Push Button Switch Stainless Steel latching switches silver alloy
Product Description
- There are two choice for Stainless steel: 316 or 304, better corrosiveness resistance and Oxidation resistance; Colors for Zn-Al Alloy: Black, Green, Yellow, Blue, Red. Two choice for Brass: Nickle plate brass or gold plated brass.
- Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatched；b.
- Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).
- LED color: 1. Red 2. Green 3. Blue 4. Yellow 5. Orange 6. White 7. Purple
Product Specification
| Model Number | JS25F-11E JS25F-22E |
| Mounting Hole | 25mm |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Material | Body Material : Stainless Steel |
| Button Material : Stainless Steel | |
| Contact Material : Silver Alloy | |
| Base Material : PBT | |
| The Front Shape | Flat Round Head |

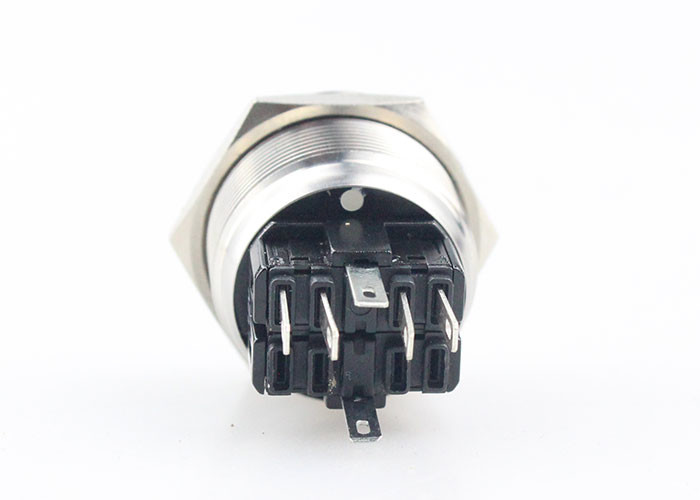

| Terminal Type | Pin Termlmal ( 2.8 * 0.5 mm ) |
| Switch Operation | Momentary or Latching |
| Contact Configuration | 1NO + 1NC or 2NO + 2NC are available |
| Mounting panel thickness | Momentary 1-8mm ; Latching 1-10 mm |
| Operation Distance | About 2.5 mm |
| LED Parameters | Led Type: Ring Symbol |
| LED Color: Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized. |
|
| Led Voltage: 3V 6V 12V 24V 36V 110V 220V for choose. |
|
| LED Life: More than 40,000 hours | |
| Protection Level | IP67 |
| Operating Temp | -20℃～+55℃ |
