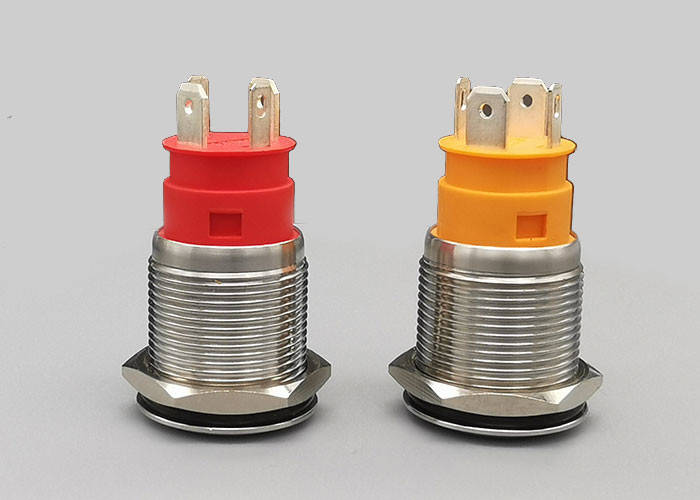

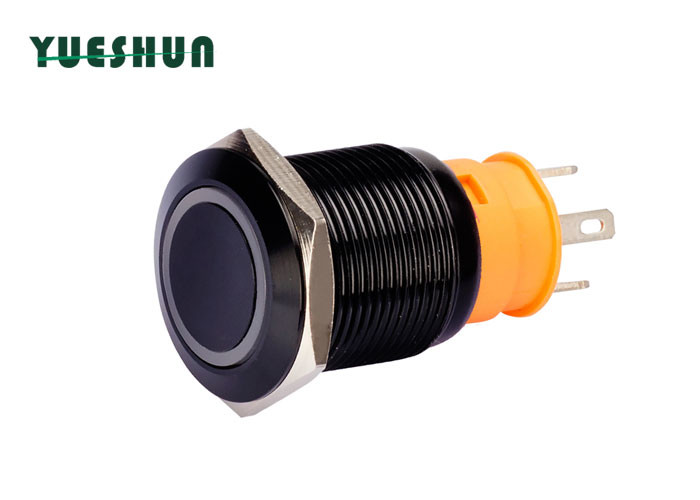

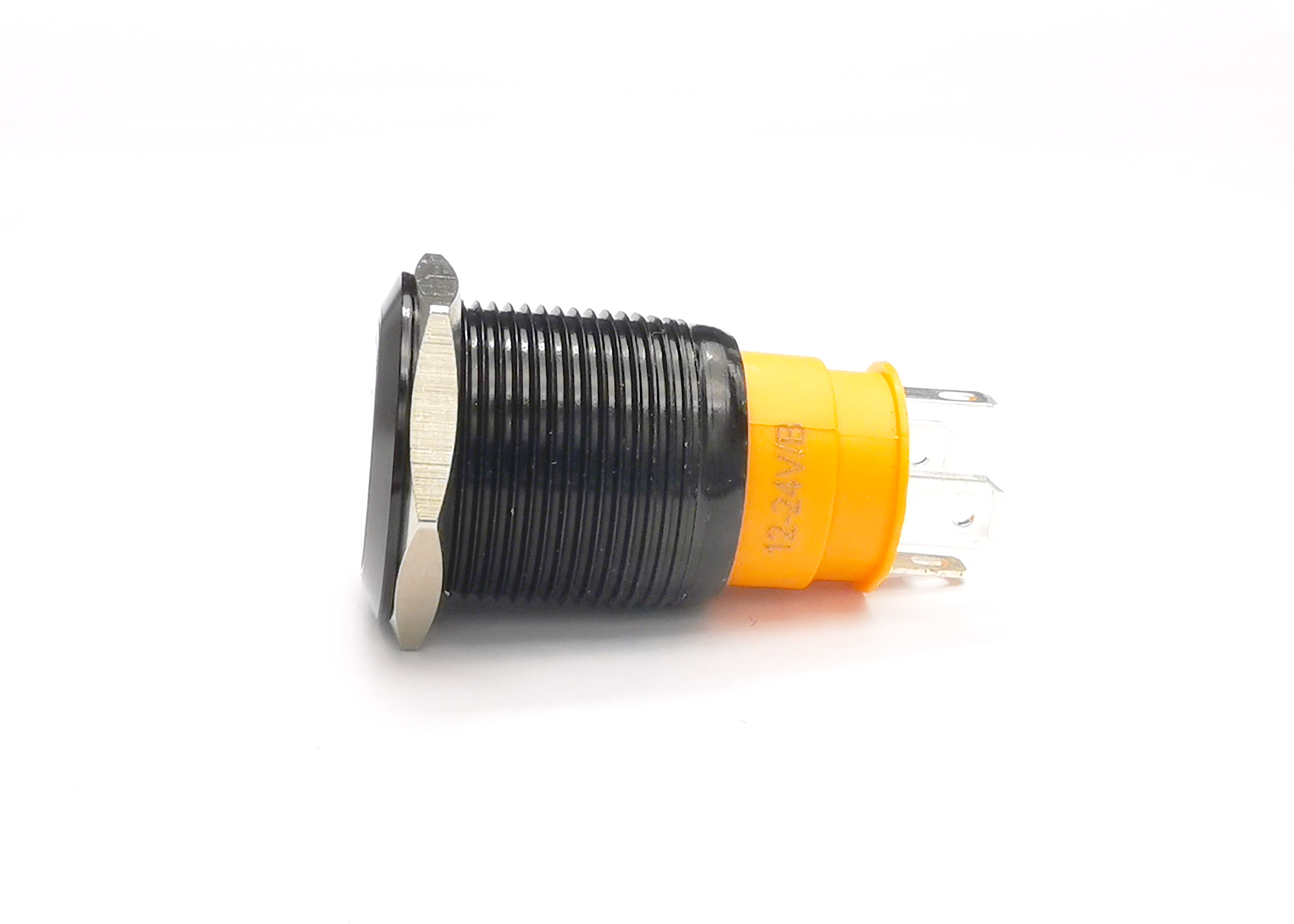

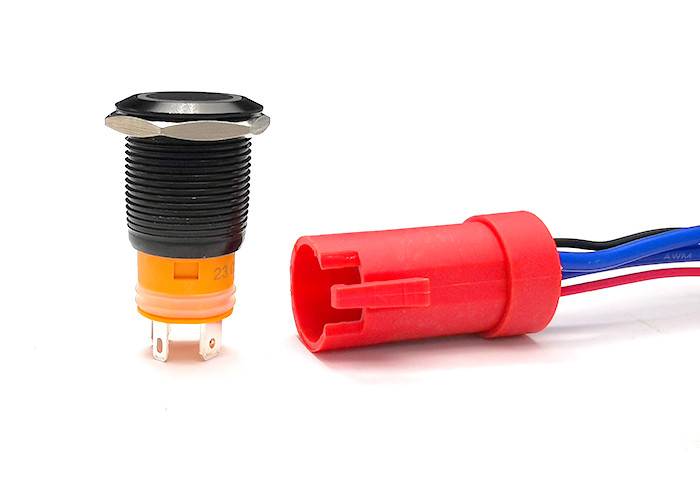

19mm Aluminum LED Panel Mount Push Button Switch Dot type 12 volt yellow orange on off switch
1.The difference between momentary with latching?
Momentary: When you push the switch,the switch is on,and then you remove your hands,the switch will off soon.
Latching: ON/OFF
2. Describe of connection:
There are five terminal points on the switch:+,-,NO,NC,C.“+” is the positive of the light,“-” is the negative of the light, “NO” is normally open, “NC” is normally closed, “C” is power positive.
Product Fatures
- The illuminated pushbutton swithes are High-grade appearance and nice touch feeling, which is made of 304 stainless steel. If you need other materials please feel free to contact us.
- Latching/Self-locking button: Press the power on, release the hand, and keep the button still (light on)； Press the button again to make it pop upand disconnect the power (light off)；
- Momentary button: Press the power on, release the hand power on of off, the button spring to original position.
- The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out;
Product Specification
|
Model Number |
LA19F-11D/L |
|
Mounting Hole |
19mm |
|
Max.Switch Rating |
Ith : 5A Ui : 250V AC |
|
Material |
Body Material: Black Oxidized Aluminum |
|
Button Material: Black Oxidized Aluminum |
|
|
Contact Material: Silver Alloy |
|
|
Base Material: PBT |
|
|
The Front Shape |
Flat Round Head |
|
Terminal Type |
Pin Termlmal ( 2.8 * 0.5 MM ) |
|
Switch Operation |
Momentary or Latching are available |
|
Contact Configuration |
1NO + 1NC or 2NO + 2NC |
|
Mounting Panel Thickness |
1-10 mm |
|
Operation Distance |
About 3.1 mm |
|
LED Parameters |
Led Type: Dot |
|
LED Color: |
|
|
Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V are available. |
|
|
LED Life: More than 40,000 hours |
|
|
Protection Level |
IP67 |
|
Operating Temp |
-20℃～+55℃ |
Size
PLS do inform us when you order:
1. What LED voltage ( 2V/3V/6V/12V/24V/36V/110V/220V or others ) would you like?
2. What LED color (Red,green,yellow,orange,blue,white, purple or bi-color )would you like?
3. What function (Momentary or ON-OFF Latching function) would you like?
Note: We will ship 12VDC Blue led latching function as common if you didn't inform us, thanks for your attention!
Specifications:
1) Anti-vandal pushbutton switch
2) Mounting diameter: 19mm
3) Head shape: high round head
4) Operation type: Momentary
5) Terminal type: PIN terminal
