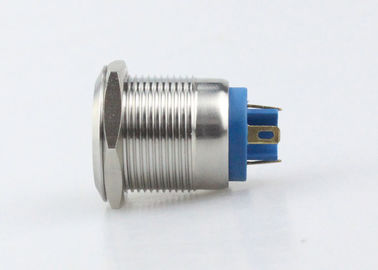

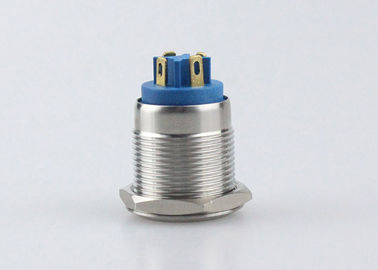

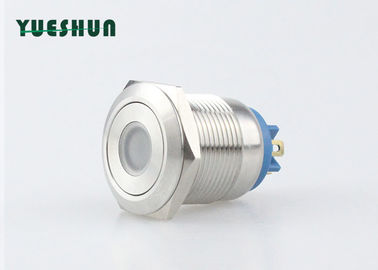

19mm Self Reset LED Panel Mount Push Button Switch Pin Termlmal silver alloy 1NO Switches
Product Fatures
- Our push button switches are tested rigorously. Each piece is tested for appearance and clicking for at least 5 times before sending.
- Momentary button: Press the power on, release the hand power on of off, the button spring to original position.
- Please allow a bit error due to manual measurement. Please check as much as possible to make sure the item is the one that you need.
Product Specification
|
Model Number |
JS19X-10D/J/S |
|
Mounting Hole |
19mm |
|
Max.Switch Rating |
Ith : 500mA Ui : 24V DC |
|
Material |
Body Material: Stainless Steel |
|
Button Material: Stainless Steel |
|
|
Contact Material: Silver Alloy |
|
|
Base Material: PBT |
|
|
The Front Shape |
Flat Round Head |
|
Terminal Type |
Pin Termlmal |
|
Switch Operation |
Momentary |
|
Contact Configuration |
1NO |
|
Mounting Panel Thickness |
1-10 mm |
|
Operation Distance |
About 0.5 mm |
|
LED Parameters |
Led Type: Dot |
|
LED Color: |
|
|
Led Voltage: |
|
|
LED Life: More than 40,000 hours |
|
|
Protection Level |
IP67 |
|
Operating Temp |
-20℃～+55℃ |
SIZE
