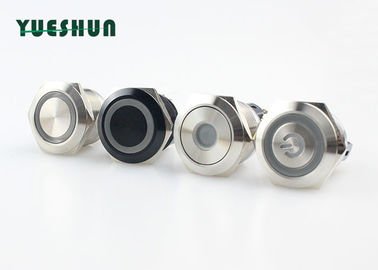

22 mm / 25mm Waterproof Push Button Switch 110V 220V LED Easy Installation

22 mm / 25mm Waterproof Push Button Switch 110V 220V LED Easy Installation
22 mm / 25mm Waterproof Push Button Switch 110V 220V LED Easy Installation

Large Image :  22 mm / 25mm Waterproof Push Button Switch 110V 220V LED Easy Installation

Product Details:

Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS25 illuminated Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Detailed Product Description
Operation Type: Momentary Latching Operating Temperature: -20℃~+55℃
LED Color: Red,Green,Yellow,Orange,Blue,White,Purple Led Voltage: 3V 6V 12V 24V 36V 110V 220V
Mounting Panel Thickness: 1-8 Mm Or 1-13 Mm Operation Distance: About 2.5 Mm
High Light:

ip67 push button switch

,

watertight push button switch

25mm Momentary LED light Waterproof Push Button Switch 22mm push button 110V 220V led



Product Description

- The switch come with a rubber O-ring whichmakes it splash resistant but it can NOT be submerged underwater;
- The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out;
- Latching/Self-locking Switch: Press the button switch, it works ; Press the button again ,switch stops working .

- Momentary Switch: Press the button switch, it works ; Press the button again ,switch stops working .



Product Specification

- Led Color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.

- Led Voltage : 3V 6V 12V 24V 36V 110V 220V for choose.

- Led Type : Ring , Dot , Power , Angle eye , Trumpet etc. Logo customization are available.

- The front shape : Flat round head , High round head are available.



Model Number JS22 JS25  illuminated Series
Mounting Hole 22 mm or 25mm
Max.Switch Rating Ith : 5A Ui : 250V AC
Material

Body Material:

Stainless Steel / Nickel Plated Brass / Aluminum

Button Material:

Stainless Steel / Nickel Plated Brass / Aluminum

Contact Material:  Silver Alloy
Base Material:  PBT
Terminal type Pin Termlmal ( 2.8*0.5 mm )
Switch Operation Momentary or Latching all Can be customized.
Contact Configuration 1NO 1NC oR 2NO 2NC all Can be customized.
Mounting panel thickness 1-8 mm or 1-13 mm
Operation Distance About 2.5mm
Protection Level IP67
Operating Temp -20℃~+55℃
