19mm Self Reset Latching Waterproof Push Button Switch 1NO 1NC stainless steel push button switch
Product Description
- Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatched；
- Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).
- Each of our products is equipped with waterproof type 0 rubber ring, which is waterproof, but can not be used in water.Otherwise, the product will not work properly soon
- It can be mounted on a 1-10mm wide mounting plate.The opening diameter of the mounting plate is 19mm.
Product Specification
- Body Material : Stainless Steel , Nickel Plated Brass , Aluminum are available.

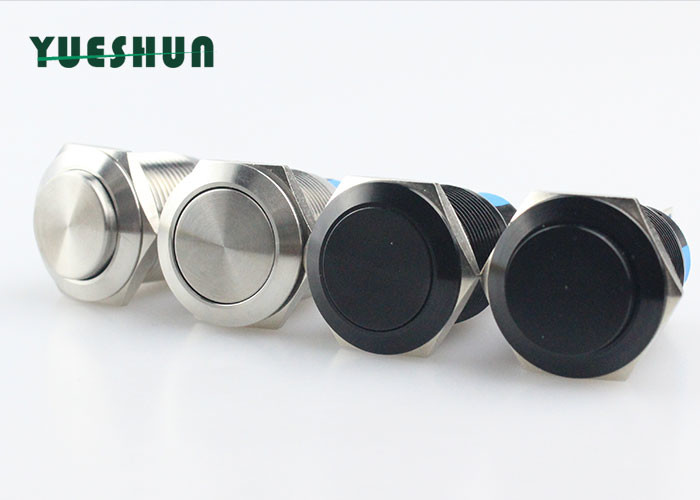

- Head Shape : High Round Head , Flat Round Head are available.
| Model Number | LA19 No Lamp Series |
| Mounting Hole | 19 mm |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Material |
Body Material: Stainless Steel / Nickel Plated Brass / Aluminum |
|
Button Material: Stainless Steel / Nickel Plated Brass / Aluminum |
|
| Contact Material: Silver Alloy | |
| Base Material: PBT | |
| Terminal type | Pin Termlmal ( 2.8*0.5 mm ) |
| Switch Operation | Momentary or Latching all Can be customized. |
| Contact Configuration | 1NO 1NC oR 2NO 2NC all Can be customized. |
| Mounting panel thickness | 1-10 mm |
| Operation Distance | About 3.1mm |
| Protection Level | IP67 |
| Operating Temp | -20℃～+55℃ |
