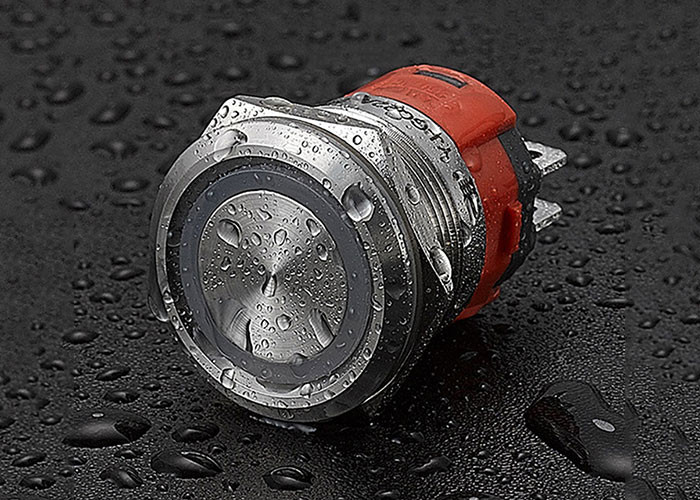

22mm 25mm Led illuminated Aluminum Push Button Switch waterproof Momentary push button switch
- The product is made of Aluminum, which is durable and can be used in outdoor environment; Other materials such as Nickel Plated Brass, Gold plated brass, Zn-Al Alloy.
- Protection Degree: IP67, IK08. Waterproof Protection Can be Used in Wet or Dusty Environment.
- Push button switch are simple device. There are two key parts for the psuh button, the actuator and the contacts. The head actuator will go all the way through the switch. Inside is a movable silve plated contact and spring. When the actuator is activited, it touches with the stationary contacts, causing the action to take place.
|Mounting Hole||22mm or 25mm|
|Max.Switch Rating||Ith : 5A Ui : 250V AC|
|Material||Body Material: Aluminum|
|Contact Material: Silver Alloy|
|Base Material: PBT|
|The Front Shape||Flat Round Head|
|Terminal Type||Pin Termlmal|
|Switch Operation||Momentary or Latching|
|Contact Configuration||1NO + 1NC or 2NO + 2NC|
|Mounting panel thickness||1-8mm or 1-13mm|
|Operation Distance||About 2.5 mm|
|LED Parameters||Led Type: Ring Symbol|
Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
3V 6V 12V 24V 36V 110V 220V 360V for choose.
|LED Life: More than 40,000 hours|
