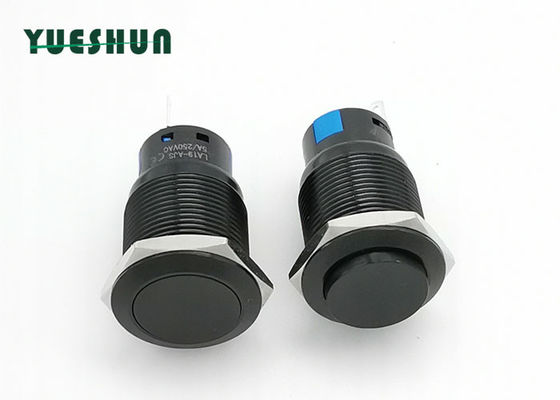

19mm Latching Waterproof Led Aluminum Push Button Switch lighted momentary push button switch
Product Description
- Illuminated push button switches are made of 304 Stainless Steel, 316 Stainless Steel, Black Aluminum, Nickel Plated Brass. Gold plated brass and so on.
- Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use.The terminals are very small, need to be very careful when soldering the wires on to them.
Product Specification
| Model Number | LA19 Series |
| Mounting Hole | 19MM |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Material | Body Material: Aluminum |
| Button Material: Aluminum | |
| Contact Material: Silver Alloy | |
| Base Material: PBT | |
| The Front Shape | Flat High Round Head |
| Terminal Type | Pin Termlmal |
| Switch Operation | Momentary or Latching |
| Contact Configuration | 1NO 1NC or 2NO 2NC |
| Mounting panel thickness | 1-10 mm |
| Operation Distance | About 3.1 mm |
| Protection Level | IP67 |
| Operating Temp | -20℃～+55℃ |
