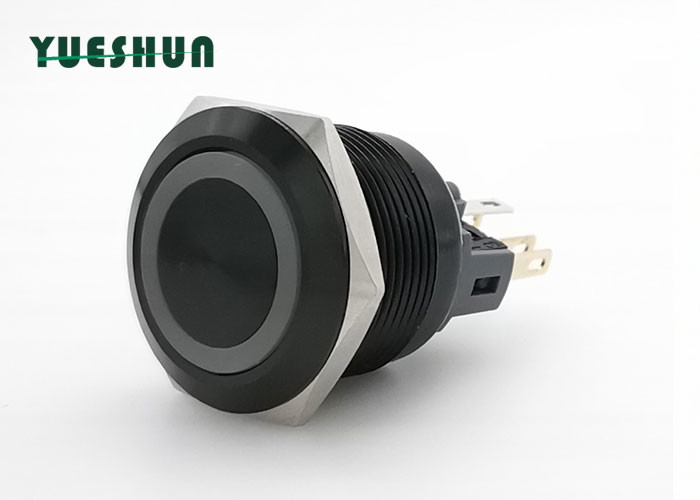

22mm 25mm Aluminum Push Button Switch LED Illuminated Good Press Performance

22mm 25mm Aluminum Push Button Switch LED Illuminated Good Press Performance
Features Gallery Product Description Request A Quote
Terminal Material: Silver Alloy
Mounting Panel Thickness: 1-8 Mm , 1-13mm
Operation Distance: About 2.5mm
Panel Mounting: 22mm 25 Mm
LED Color: Red Blue Green Yellow Orange White Purple
Led Voltage: 3V 6V 12V 24V 36V 110V 220V
High Light:

waterproof push button on off switch


latching push button power switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS22F-11E/L
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

22mm 25mm Led illuminated Aluminum Push Button Switch waterproof Momentary push button switch


Product Description

- The product is made of Aluminum, which is durable and can be used in outdoor environment; Other materials such as Nickel Plated Brass, Gold plated brass, Zn-Al Alloy.
- Protection Degree: IP67, IK08. Waterproof Protection Can be Used in Wet or Dusty Environment.

- Push button switch are simple device. There are two key parts for the psuh button, the actuator and the contacts. The head actuator will go all the way through the switch. Inside is a movable silve plated contact and spring. When the actuator is activited, it touches with the stationary contacts, causing the action to take place.


Product Specification


Model Number JS22F-11E/L
Mounting Hole 22mm or 25mm
Max.Switch Rating Ith : 5A Ui : 250V AC
Material Body Material: Aluminum
Button Material:Aluminum
Contact Material: Silver Alloy
Base Material: PBT
The Front Shape Flat Round Head
Terminal Type Pin Termlmal
Switch Operation Momentary or Latching
Contact Configuration 1NO + 1NC or 2NO + 2NC
Mounting panel thickness 1-8mm or 1-13mm
Operation Distance About 2.5 mm
LED Parameters Led Type: Ring Symbol
LED Color:
Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
Led Voltage:
3V 6V 12V 24V 36V 110V 220V 360V for choose.
LED Life: More than 40,000 hours
Protection Level IP67
Operating Temp -20℃~+55℃
