Momentary Maintained 16mm 10A Push Button Switch

Momentary Maintained 16mm 10A Push Button Switch
Features Gallery Product Description Request A Quote
Rated Voltage/Current: 10A / 250V AC
Front Head: High Round
Waterproof/Protection: IP67
Shell Metal: Stainless Steel / Chrome Plated Brasss
Emitting Type: Ring Illuminated
Connect Type: Pin Termlmal
High Light:

Momentary Maintained Push Button Switch


Push Button Switch IP67


16mm 10A Push Button Switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: GQ16AH-10E
Payment & Shipping Terms
Packaging Details: Blister Package+ Foam+Color box Or Upon your request
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

16mm 10A Heavy Duty 1NO Or 1NC Momentary Maintained Push Button Switch High Round Head 12V 24V Yellow Light Switches



- 16mm Mount Hole;

- Momentary or Latching;

Latching type power buttons : Push it–on, push it again-off;

Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.

- Our buttons can be Used in Various Additional Electric Equipment, Reaply, Inside or Outside the Car or Any Circuit Controls. Anti-vandal push buttons are used for electronmagnetic Starter, relay, Horn Button Switch,Car modification, the host computer keys, buttons and instruction button appliances, PC Power Switch or any circuit controls.

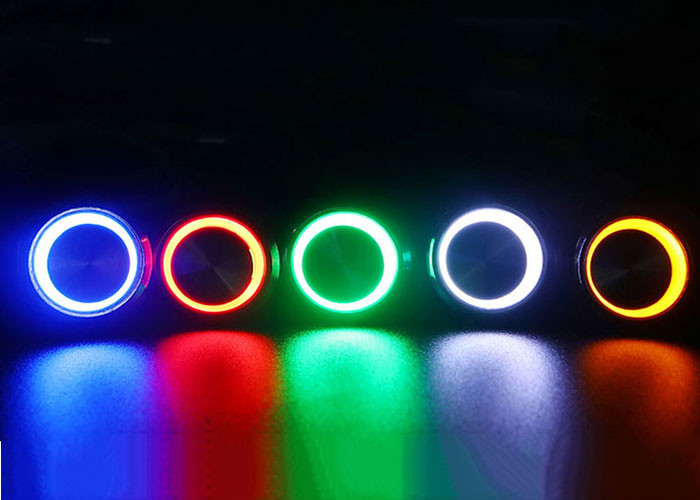

Momentary Maintained 16mm 10A Push Button Switch 0


Product Description
Product name 10A Large current Metal push button switch
Produstion Type GQ16AH-10E/S GQ16AH-10E/N
Body material Stainless steel Chrome plated brasss
Button material Stainless steel Stainless steel
Base material PBT PBT
Mounting hole size 16mm
Max. Current 10A
Max. Voltage 250V AC
Contact structure 1NO OR 1NC
Operation type Momentary or Latching
Head shape High Round Head
Emitting Type Ring Logo illuminated
Lamp color Red Green Blue Yellow White
Lamp voltage 3V 6V 12V 24V 36V 48V 110V 220V 380V



Product Parameter
Mechanical life More than 1,000,000 times
Electrical life ore than 200,000 times
Operating temperature -25℃- +55℃
Operating humidity 45-82%RH
Operating distance About 2mm
Operating pressure About 3N
Protection level IP67
Insulation resistance More than 1000MΩ
Contact resistance ≤ 50mΩ

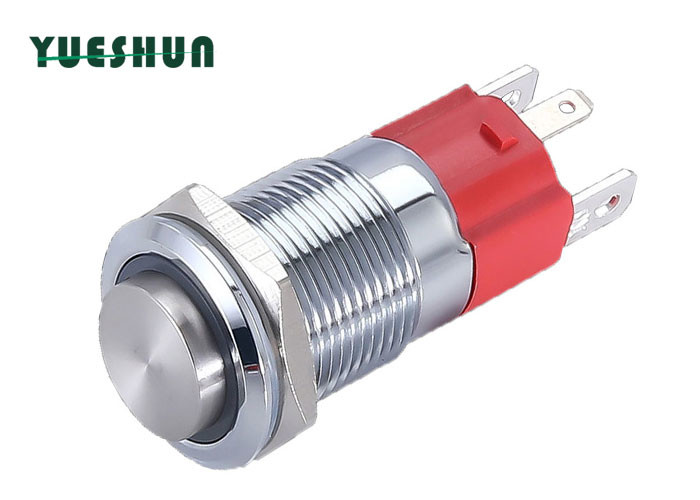

Momentary Maintained 16mm 10A Push Button Switch 1



- Q:Can your company customize the product for me?

A:Many custom products require mold redevelopment, which requires additional fees.We have also developed molds for many of our clients.


- Q:What will you do if the product is damaged in transit?

A:We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery.


- Q:Do you offer OEM service?

A:Of course, we use the general packaging, you can paste your LOGO on it.


Transportation and Packing


- We have 50 pieces/box and 25 pieces/box of packaging, using foam box to protect each product, effectively avoid the damage caused by direct friction between products.
- We use bubble wrap for each product to prevent damage in transit.We promise that if any of our products are damaged in transit, we will replace them.
- Normally, we will deliver the goods within three working days after the customer places an order.We usually deliver goods by DHL,UPS,FEDEX,EMS and other express delivery methods, which can be delivered within 3-5 days.
