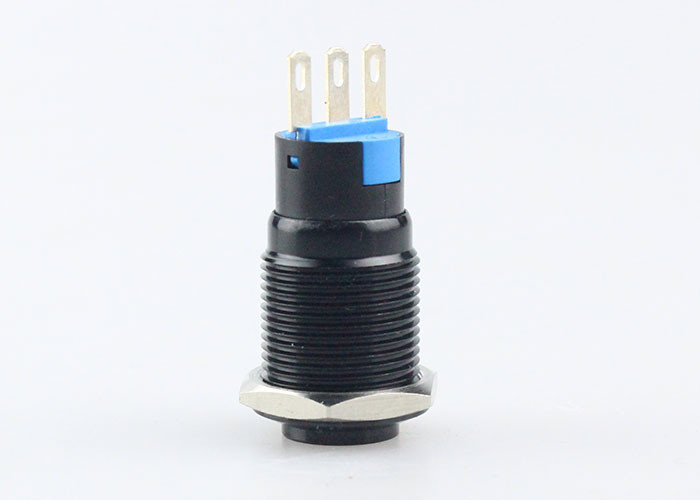

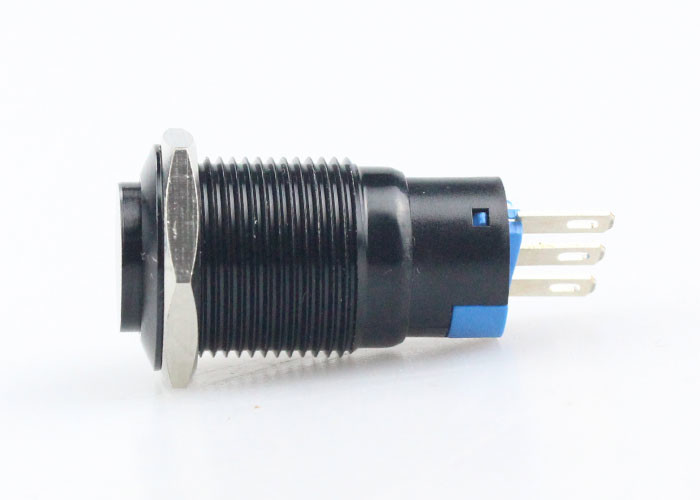

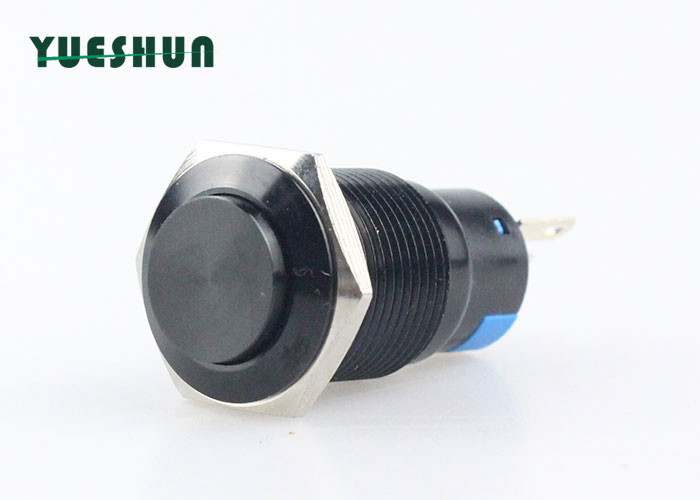

Momentary Black Aluminum 3 Pin Metal Push Button Switch 16mm waterproof on off push button switch
Product Feature
- You can find our push button switches in many device such as PC, Car, Boart, Elevator, Bank machine, etc.. They are widely used around us. Most often Quentacy latching switches are used for various additional electric equipment, inside & outside the car(Such as critical lights, chassis lamp, fog lamps, dome light).
- Latching / Self-locking button: Press the power on, release the hand, and keep the button still (light on)； Press the button again to make it pop upand disconnect the power (light off)；
- Momentary / self reset button: Press the power on, release the hand power on of off, the button spring to original position.
- Package : 40pcs/box, or 100pcs/box. 1 piece push button switches with 1 robber ring.
Product Specification
| Model Number | LA16H-11/L |
| Mounting Hole | 16 mm |
| Max.Switch Rating | Ith: 5A Ui: 250V AC |
| Material | Body Material: Stainless Steel |
| Button Material: Stainless Steel | |
| Contact Material: Silver Alloy | |
| Base Material: PBT | |
| The Front Shape | High Round Head |
| Terminal Type | Pin Termlmal |
| Switch Operation | Momentary or Latching are available. |
| Contact Configuration | 1NO 1NC or 2NO 2NC are available. |
| Mounting panel thickness | 1-10 mm |
| Operation Distance | About 2.8 mm |
| Protection Level | IP67 |
| Operating Temp | -20℃～+55℃ |
