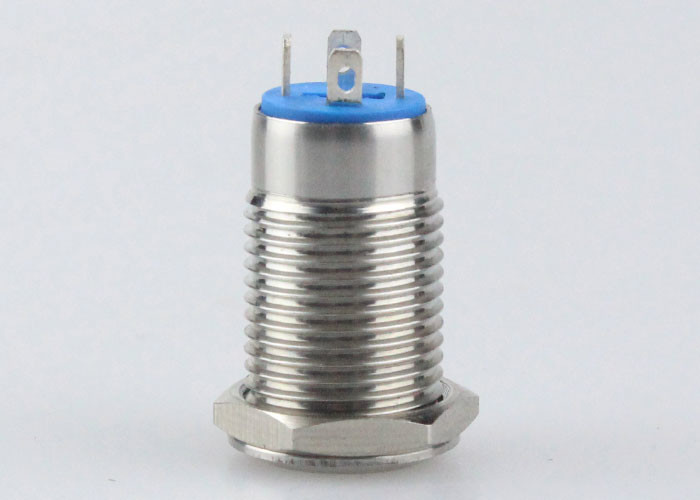

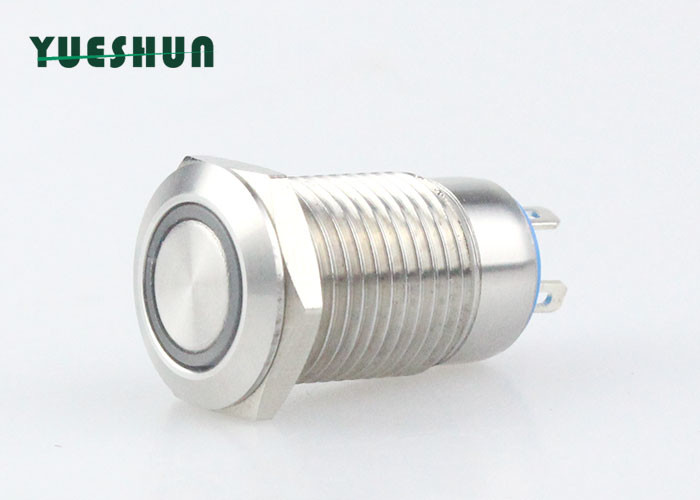

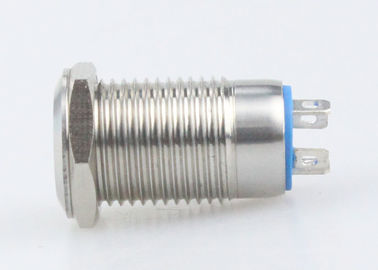

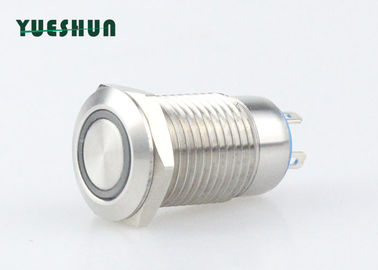

12mm waterproof momentary Metal Push Button Switch LED illuminated stainless steel push button switch
Product Description
- The push button is a type of switch that controls an action in a machine or some type of process. We use stainless steel, or brass or zin-al alloy, sometimes plastic. They are popular in many equipments. Some equipments need Latching ones, others need momentary ones.
- Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatched；
- Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).
- IP Degree: Most of our products are IP67, some of them IP65, 6 means Totally protected against dust,7 means Protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes, 5 means Protected against low pressure jets if water from all directions - limited ingress permitted
Product Specification
| Model Number | LA12F-10E |
| Mounting Hole | 12 mm |
| Max.Switch Rating | Ith : 2A Ui : 36V DC |
| Material | Body Material : Stainless Steel |
| Button Material :Stainless Steel | |
| Contact Material : Silver Alloy | |
| Base Material : PBT | |
| The Front Shape | Flat Round Head |
| Terminal Type | 4 Pin Termlmal( 2.0 * 0.5 MM ) |
| Switch Operation | Momentary or Latching are available |
| Contact Configuration | Normal Open |
| Mounting panel thickness | 1-10 mm |
| Operation Distance | About 2.0 mm |
| LED Parameters | Led Type : Ring Symbol |
| LED Color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized. |
|
| Led Voltage: 3V 6V 12V 24V 36V for choose. |
|
| LED Life : More than 40,000 hours | |
| Protection Level | IP67 |
| Operating Temp |
-20℃～+55℃ |
Size Drawing
