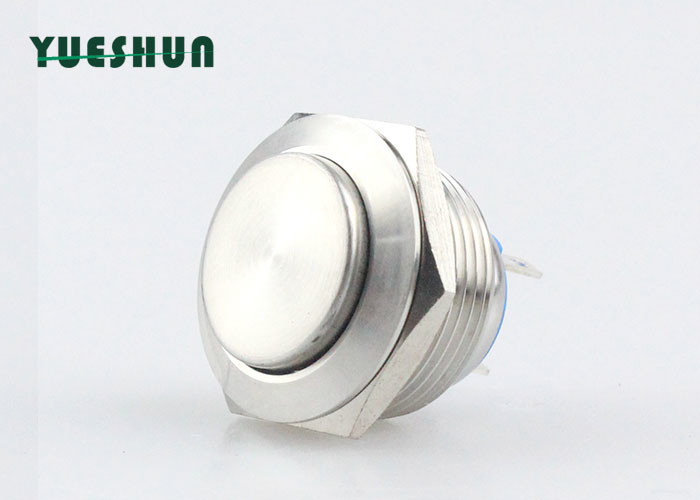

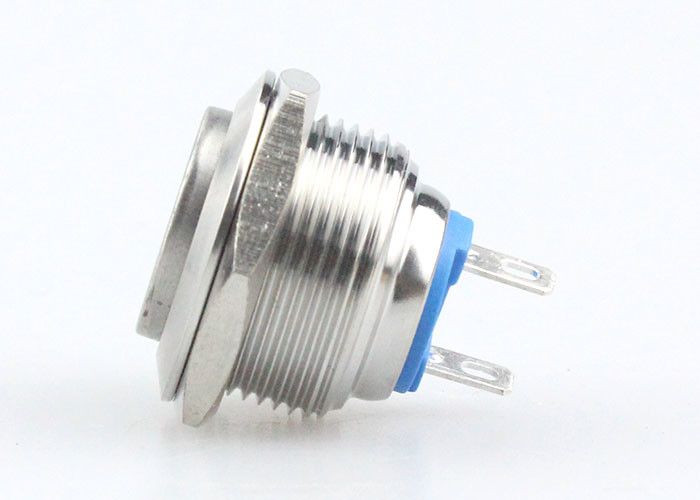

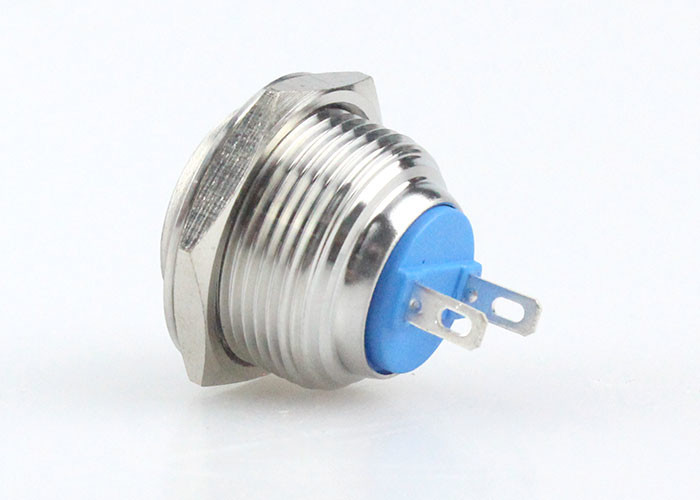

IP65 Waterproof 19mm Metal Push Button Switch micro momentary push button switch High head
Product Description
- High-quality push button switches are based on a solid-state output, we ensure you a very long life expectancy (more than 50 millions cycles).The flat actuator is completely closed, preventing the water and the dusts, perfect for surface cleaning required in the food-processing and medical industries.
- Momentary button: Press the power on, release the hand power on of off, the button spring to original position.
- Real color may slightly different from pictures due to many factors such as computer screen's resolution, brightness, contrast etc. Hope understanding.
Product Specification
| Model Number | JS19H-10J/S |
| Mounting Hole | 19 mm |
| Max.Switch Rating | Ith : 2A Ui : 36V DC |
| Material | Body Material : Stainless Steel |
| Button Material :Stainless Steel | |
| Contact Material : Silver Alloy | |
| Base Material : PBT | |
| The Front Shape | High Round Head |
| Terminal Type | 2 Pin Termlmal( 2.8 * 0.5 MM ) |
| Switch Operation | Momentary |
| Contact Configuration | Normal Open |
| Mounting panel thickness | 1-6 mm |
| Operation Distance | About 1.5 mm |
| Protection Level | IP65 |
| Operating Temp |
-20℃～+55℃ |
Size Drawing
