12 Volt LED Stainless Steel Push Button Switch 16mm Panel Mount High Head Ring Type

12 Volt LED Stainless Steel Push Button Switch 16mm Panel Mount High Head Ring Type
Features Gallery Product Description Request A Quote
LED Color: Red,Green,Yellow,Orange,Blue,White,Purple Or Double Color Mixing Can Be Customized.
Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V
Color: Silver
Body Material: Stainless Steel
Application: Universal
Contact Configuration: Normal Open
High Light:

push button reset switch


round push button light switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS16H-10E
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

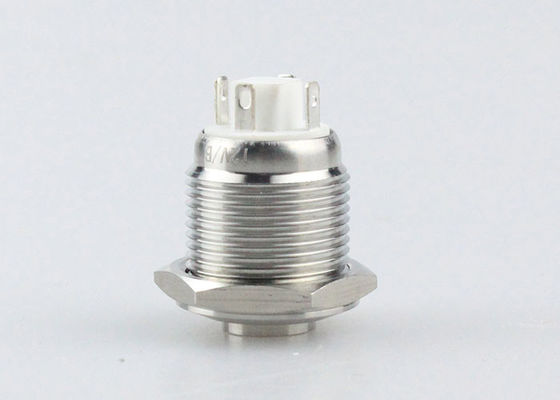

16mm High head Ring Type LED Panel Mount Push Button Switch Stainless Steel 12 Volt Momentary Switch


Product Fatures

- 16 mm High Round Head lluminated push button switches are made of 304 Stainless Steel.
- It is Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.
- IP Degree: Most of our products are IP67, some of them IP65, 6 means Totally protected against dust,7 means Protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes, 5 means Protected against low pressure jets if water from all directions - limited ingress permitted


Product Specification


 Model Number


Mounting Hole


Max.Switch Rating

Ith : 500mA Ui : 24V DC


Body Material: Stainless Steel

Button Material: Stainless Steel

Contact Material: Silver Alloy

Base Material: PBT

The Front Shape

High Round Head

Terminal Type

Pin Termlmal

Switch Operation


Contact Configuration


Mounting Panel Thickness

1-6 mm

Operation Distance

About 0.5 mm

LED Parameters

Led Type: Ring Type

LED Color:
Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.

Led Voltage:

3V 6V 12V 24V are available.

LED Life: More than 40,000 hours

Protection Level


Operating Temp
