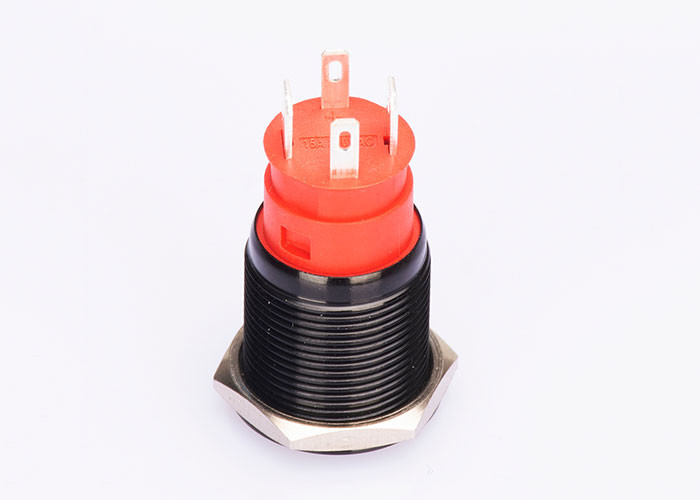

Waterproof Momentary Push Button Switch Anodized Aluminium 10A Silver Contacts 2000VAC

Negotiable
MOQ
Negotiable
Price
Waterproof Momentary Push Button Switch Anodized Aluminium 10A Silver Contacts 2000VAC
Features Gallery Product Description Request A Quote
Features
Specifications
MateriAnodized Aluminiumal: Anodized Aluminium
Size: 19mm
LED SYMBOL: RING SYMBOL
TYPE: Momentary
Dielectric Strength: 2000VAC
IP Degree: IP67
High Light:

waterproof momentary push button switch

,

Aluminium 10A push button switch

,

2000VAC push button switch

Basic Infomation
Place of Origin: CHINA ZHEJIANG
Brand Name: YUESHUN
Certification: ROHS CE
Model Number: LA19D-10EY/L
Payment & Shipping Terms
Packaging Details: Blister Package+ Foam+Color box Or Upon your request
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

Anodized Aluminium 10A waterproof momentary push button switch silver contacts



Product Feature:

——High quality metal shell, durable and strong corrosion resistance, not easy to fade, excellent performance, IP67 protection level are great for all kinds of first level equipments.

——All our products have passed the CE, CCC, ROHS etc. certifications

——Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use





                                                        Product Details

PRODUCT FEATURES
Install Diameter
19mm
Operation Type
Momentary or Latching
Switch Combination
1NO
Head Shape
Flat Round Head
Terminal Type
4 PIN TERNINAL
Panel Thickness
1-10mm
Operating Distance
About 2.5mm
PRODUCT MATERIALS
Body Material
Black Anodized Aluminium
Button Material
Black Anodized Aluminium
Base Material
PBT
Contact Material
Silver Alloy
LED SPECIFICATIONS
LED Type
Power  LED
LED Color
Red / Green / Yellow / Blue/ White / Bi-color
LED Voltage
3V / 6V / 12V / 24V / 36V / 110V / 220V
LED Life
More Than 40,000 hours
ELECTRICAL SPECIFICATIONS
Max Switch Rating
10A / 250V AC DC
Contact Resistance
≤ 50mΩ
Insulation Resistance
≥ 10000mΩ
Dielectric Strength
2000VAC
Mechanical Life
More than 1000,000 cycles
Electrical Life
More than 100,000 cycles
ENVIRONMENTAL SPECIFICATIONS
IP Degree
IP 67
Operation Temperature
20℃~+55℃
Operating Pressure
About 3-5N
Torque
5-14Nm



Product size reference:

Waterproof Momentary Push Button Switch Anodized Aluminium 10A Silver Contacts 2000VAC 0



About us:

The company is one of the domestic manufacturers specializing in the production of metal button switches, metal indicator lights, focus on the development of high-quality products, production and sales, as well as services.

In order to guarantee the national consumers enjoy a high standard service, the company dedicated power strictly control the quality of products.For the design of the product carefully thinking, trial and error on the performance of the products to strictly control the quality of the parts, to constantly improve production technology, the customer Suggestions continuous improvement.

We strive to explore the market demand, to find the most market demand button products, to create the most satisfied customers products, strive to walk in the forefront of the trend, strive to build Yueshun brand, brilliant Yueshuni.Welcome customers to cooperate with us.

Waterproof Momentary Push Button Switch Anodized Aluminium 10A Silver Contacts 2000VAC 1
