Pigtail Connetor Led 19MM IP65 SS Push Button Switch

1Piece
MOQ
Negotiable
Price
Pigtail Connetor Led 19MM IP65 SS Push Button Switch
Features Gallery Product Description Request A Quote
Features
Specifications
Terminal Material: Silver Alloy
Panel Mounting: 19MM
Mounting Panel Thickness: 1-10 Mm
Head Shape: Flat Round Head
Warranty Period: Three Year
Operation Distance: About 3.2mm
Water Resister: IP65
LED: Multiple Color
High Light:

pc push button switch

,

push button doorbell switch

Basic Infomation
Place of Origin: China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA19F-11E/S+C
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation. 500pcs 0r 1000pcs/carton
Delivery Time: 5000Pcs/Day
Supply Ability: T/T to our company account or by paypal
Product Description

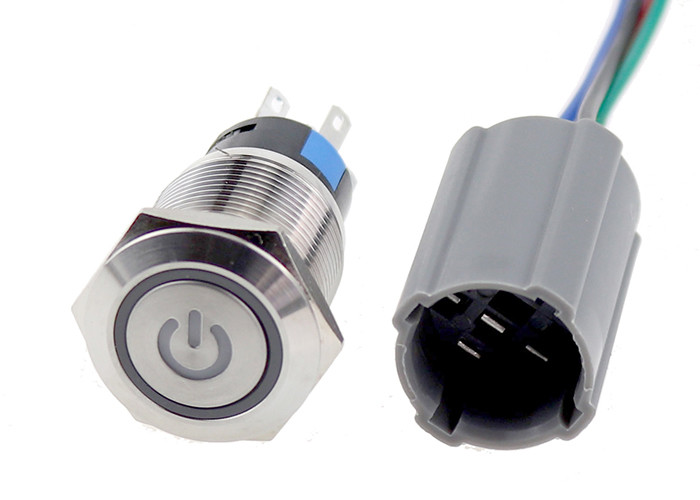

Pigtail Connetor Led 19MM IP65 SS Push Button Switch



Push Button Switch Feature:

  • 19mm diameter
  • water resister: IP65
  • 1 million mechanical life
  • Anti-vandal 304 or 316 stainless steel
  • Multiple LED color
  • Pigtail: with or without is on your choice. 15cm 30cm 60cm availble.

- This metal Push button has super self-locking performance, 50 cm vertical drop lock, super waterproof performance, up to IP67 class.

-  Latching/Self-locking button: Press the power on, release the hand, and keep the button still (light on); Press the button again to make it pop upand disconnect the power (light off) ; Momentary button: Press the power on, release the hand power on of off, the button spring to original position.

- Our products have a wide range of applications.Our products are used worldwide in elevator, power, rail transit, mechanical equipment, electronics, lighting technology and many other areas of demand.



Push Button Switch Parameters
  Model   LA19F-11EY/S+C
  Dia.   19mm
  Max.Switch Rating   Ith : 5A Ui : 250V AC
 Outshell/Press Key   Stainless Steel
  Base material   PBT
  Terminal Type   Pin Termlmal (2.8*0.5mm)
  Mounting panel thickness   1-10 mm
  Ambient Temperature   -20℃~+55℃
  Switch Operation   Momentary or Latching
  Package   Push button switch + Pigtail socket
Led Parameters
  Led Symbol   Ring + Power Symbol / Customized
  Led Color   Red,Green,Yellow,Orange,Blue,White,Purple
  Rated Voltage   3V 6V 12V 24V 36V 110V 220V 360V for choose.
  Reference Life   More than 40,000 hours






Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers

Pigtail Connetor Led 19MM IP65 SS Push Button Switch 0

Our sales and customer service teams:

    We have a professional sales and customer service team, 24 hours online, customers have any problems we will do our best to solve you.



Pigtail Connetor Led 19MM IP65 SS Push Button Switch 1



Our packaging

    We use foam boxes to reduce accidents in transit and protect our products from damage.

Pigtail Connetor Led 19MM IP65 SS Push Button Switch 2



Company Introduction:

We are specialized in producing high quality metal push button switches, plastic push button switches, Indicators, as well as the accessories. Our products are beautiful, compact, high reliable, and durable, which are widely used in various industrial cabinets, household appliances, automation industries cabinets, etc. We offer all the popular panel cutout size such as 12mm, 16mm, 19mm, 22mm, 25mm, etc. and multiple LED colors such as blue, green, white, yellow, etc. We promise to use premium materials for all our products whatever metal or plastic. We ensure each product is perfect before coming out, so we check and test them one by one. And also we have got CE and RoHS approvals for all of our products.



F&Q



1. Q:Where is the location of your factory?

    A:Our factory is in yueqing, zhejiang province, China.



2. Q:When was your factory set up and put into production?

    A:Our company established in 2008, is a rapid growing enterprise in the manufacturing of push button switches.



3. What the differece between your products and others?

    We insist on the quality is the life of our products, so we keep in improving it. From the appearence, function, touch feeling, LED light, etc. we all take good chance in comparing.



4. Can you provide samples?

  Ofcourse, please contact us.



After sales: 2 years warranty.
