30mm Steel 24v Anti Vandal Push Button Switch Momenatry With Rgb Led
Negotiable
MOQ
Negotiable
Price
30mm Steel 24v Anti Vandal Push Button Switch Momenatry With Rgb Led
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA ZHEJIANG
Brand Name: YUESHUN
Certification: ROHS CE
Model Number: WD30-10E/S
High Light:

Anti Vandal 30mm Push Button Switch

,

24v Anti Vandal Push Button Switch

,

Anti Vandal Steel Button Switch Momenatry

Payment & Shipping Terms
Packaging Details: Blister Package+ Foam+Color box Or Upon your request
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Specifications
Mounting Hole Diameter: 22mm
LED Voltage: 3V / 6V / 12V / 24V / 36V / 110V / 220V / 380V
Switch Combination: 1NO
Terminal Type: 4 Pin Terminal
LED Color: Red / Green / Blue / Yellow / White / Orange / Purple
Material: Stainless Steel
Product Description

30mm Waterproof Steel Ultra-Short 24v Anti Vandal Push Button Switch Momenatry With Rgb Led



Quick Details:



——It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.

——Momentary button: Press the power on, release the hand power on of off, the button spring to original position.

——LED Voltage (AC & DC General ) 3V / 6V / 12V / 24V / 36V / 110V / 220V / 380V

  LED Color : Red / Green / Blue / Yellow / White / Orange / Purple







                                                    Product Parameter



mounting hole size 30mm
the front head shape flat head
body material stainless steel
Max.Current 500mA
Max.Voltage 24VDC
terminal type 4 pin terminal
operation type momentary
Mechanical life more than 1000000 cycles
Contact Configuration 1NO
IP Rating ip67
LED Type ring
LED Color Red / Green / Blue / Yellow / White / Orange / Purple
LED Voltage 3V / 6V / 12V / 24V / 36V / 110V / 220V / 380V
LED Life more than 40000 lifes




Product size:



30mm Steel 24v Anti Vandal Push Button Switch Momenatry With Rgb Led 0

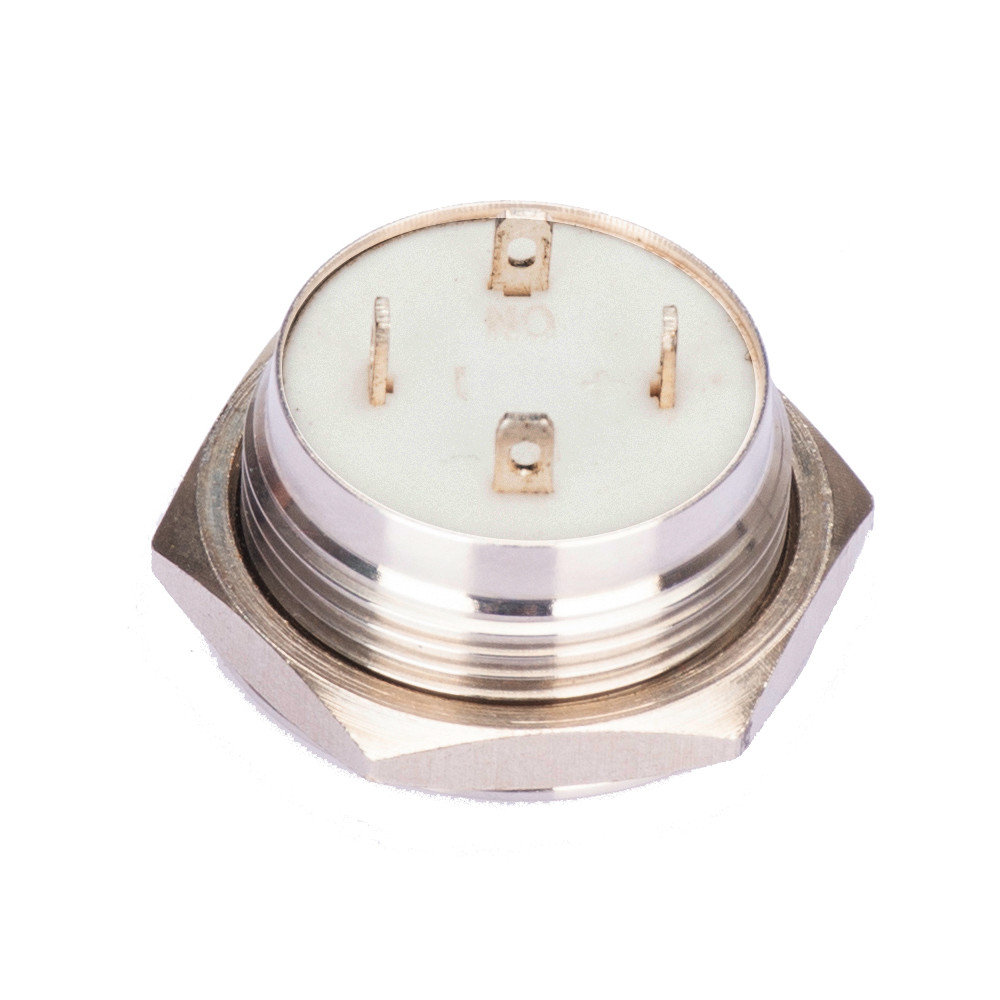

PIN Terminal:



4 Terminal Pin

LED Pin ("+",:-:), 20*0.5mm

Switch Pin (NO-NO), 2.0*0.5mm



 30mm Steel 24v Anti Vandal Push Button Switch Momenatry With Rgb Led 1




Product display:



LED Color :
Red / Green / Blue / Yellow / White / Orange / Purple

LED Voltage (AC & DC General ) 3V / 6V / 12V / 24V

30mm Steel 24v Anti Vandal Push Button Switch Momenatry With Rgb Led 2



F&Q:



Q: Can you make the switch as our requirement?

     A: Yes, we can. We are professional switch manfacturer with over 20 years research experience.



    Q. What are your terms of packing?

    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.



     Q:How do we know you have delivered the goods?

     A:We will give you the tracking number after delivery, so that you can check the logistics information of your goods at any time.



     Q:What is your terms of payment ?

     A: For small amount orders, 100% better paid by PayPal or T/T in advance. For large amount orders like more than 10000USD, 30% T/T in advance , balance fully paid before shipment.



Transport:

         We have cooperated with DHL, UPS, fedex and other logistics companies.It can greatly save the transportation cost of products.

        30mm Steel 24v Anti Vandal Push Button Switch Momenatry With Rgb Led 3
