Metal Piezo Electriacl Touch Switch 4 Wires Momentary With Blue Led
Negotiable
MOQ
Negotiable
Price
Metal Piezo Electriacl Touch Switch 4 Wires Momentary With Blue Led
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA ZHEJIANG
Brand Name: YUESHUN
Certification: ROHS CE
Model Number: YD25-10E/S
High Light:

Piezo Electriacl Touch Switch

,

Normally Open Piezo Touch Switch

,

Piezo Touch Switch With Blue Led

Payment & Shipping Terms
Packaging Details: Blister Package+ Foam+Color box Or Upon your request
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Specifications
Packing: Paper Box
Voltage: 24VDC/AC
Head Type: Flat Round Head
Diamter: 22mm
Material: Metal
Mechanical Life: More Than 1000000 Times
Product Description

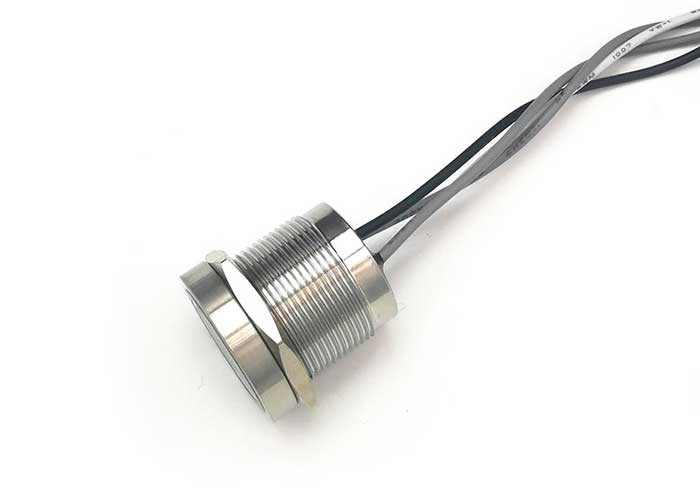

Normally Open Metal Piezo Electriacl Touch Switch 4 Wires Momentary With Blue Led





Quick Description:

——Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.

——the wire length can be customized ,please inform us by message.

——the goods is of waterproof and dustproof.





  Product Details





size 22mm
head type flat round head
terminal type 4 wires of 0.22 square,30mm
ip degree IP68 IEC529
Max.Current 200mA
contact resistance ≤ 50mΩ
Operation Temperature -40℃~+70℃



Product size:



Metal Piezo Electriacl Touch Switch 4 Wires Momentary With Blue Led 0Product Size:





LED color:

Metal Piezo Electriacl Touch Switch 4 Wires Momentary With Blue Led 1

Metal Piezo Electriacl Touch Switch 4 Wires Momentary With Blue Led 2

High bright solid color LED light, beautiful not dazzling. Built-in buck resistor. Customized LED light sign. 7 colors optional,


can be customized Bi-colors, Tri-colors.





F&Q:



Q: Can you make the switch as our requirement?

 A: Yes, we can. We are professional switch manfacturer with over 20 years research experience.



 Q: Is it possible to customize the product according to our requirements?

 A:You can provide us with your specific product requirements, we will manufacture the products you need individually for you.





       Q:Do you have a catalog? Can you send me the catalog to me for checking them ?

       A: Yes , We have product catalog.Please contact us on line or send an Email for sending the catalog.





Transport&Packing:





  1. We have 50 pieces/box and 25 pieces/box of packaging, using foam box to protect each product, effectively avoid the damage caused by direct friction between products.
  2. Normally, we will deliver the goods within three working days after the customer places an order.We usually deliver goods by DHL,UPS,FEDEX,EMS and other express delivery methods, which can be delivered within 3-5 days.
