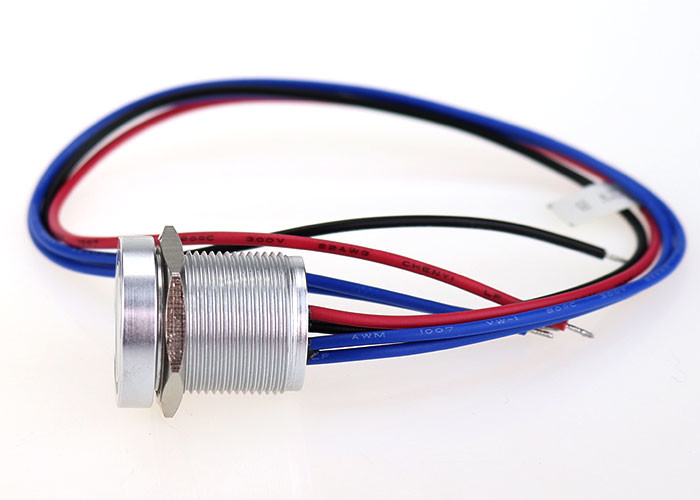

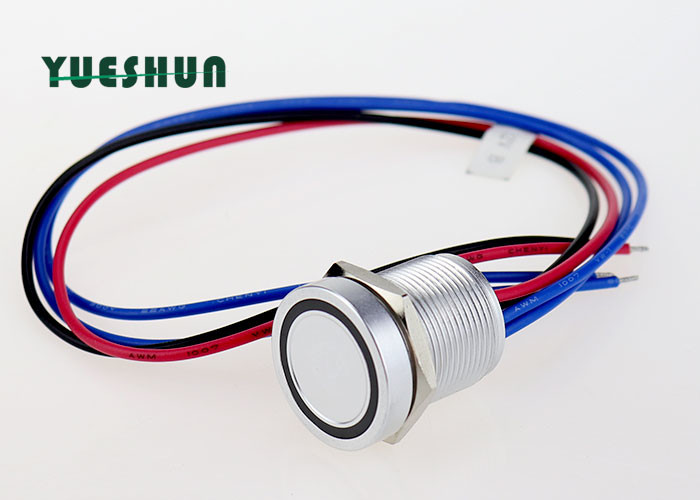

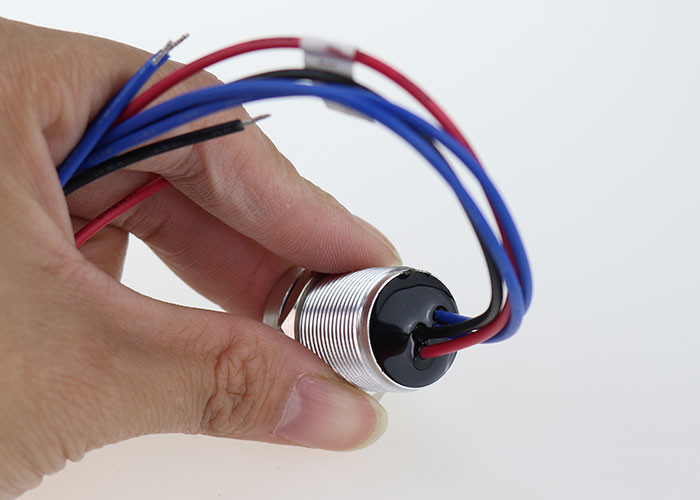

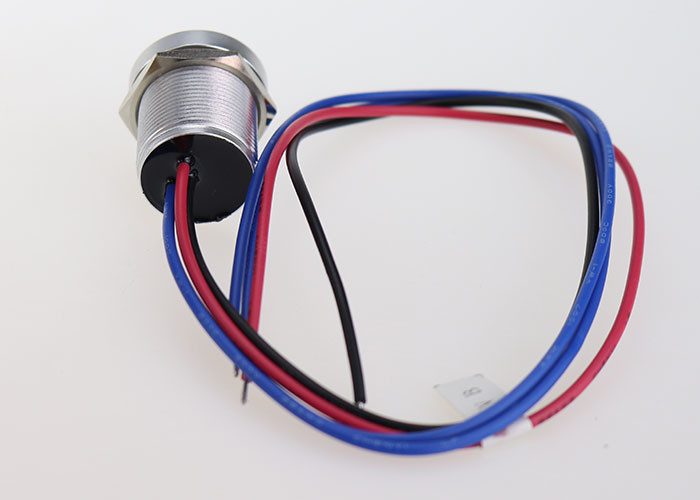

12V 24V LED Illuminated Piezo Touch Switch , 19mm Switch Push Button Momentary

12V 24V LED Illuminated Piezo Touch Switch , 19mm Switch Push Button Momentary
Features Gallery Product Description Request A Quote
Max. Current: 200mA
Max. Voltage: 24V DC
Pulse Time: Less Than Or Equal To 50ms
Item: Piezo Touch Illuminated Switch
LED Color: Red Green Blue Orange Yellow White All Can Be Customized
Led Voltage: 3V 12V 24V All Can Be Customized
High Light:

piezoelectric push button


piezoelectric light switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: YD19-10E
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

12v 24v LED illuminated Piezo Touch Switch 19mm momentary touch mounting panel switch


Product Fatures

- The product is made of stainless steel, waterproof and explosion-proof, and can work in harsh conditions with a life expectancy of more than 40,000 hours.

- It is widely used in various fields, such as mining equipment, access control system, medical equipment, household appliances and so on

- It use universal AC/DC LED, and there is no difference between the positive pole and the negative pole of the wiring terminal, and the LED has built-in protective resistance, which does not need external connection.


Product .Specification


Model Number


Mounting Hole


Max.Switch Rating

Ith : 200mA Ui : 24V DC

Body Material

Stainless Steel

The Front Shape

Flat Round Head

Terminal Type

0.22 Square wire (wire length can be customized)

Switch Operation


Pulse Time

Less than or equal to 50ms

Mounting panel thickness

1-10 mm

LED Parameters

Led Type: Ring Symbol

LED Color:
Red,Green,Yellow,Orange,Blue,White Can be customized.

Led Voltage:
3V 6V 12V 24V for choose.

LED Life: More than 40,000 hours

Protection Level

IP68 IEC529

Operating Temp


Working Pressure


Mechanical life:

More than1,000,000 cycles

Electrical life:

More than 500,000 cycles
