Home /Products/Piezo Switch/16mm Mini Metal Piezo Touch Switch Self Reset Momentary For Industrial

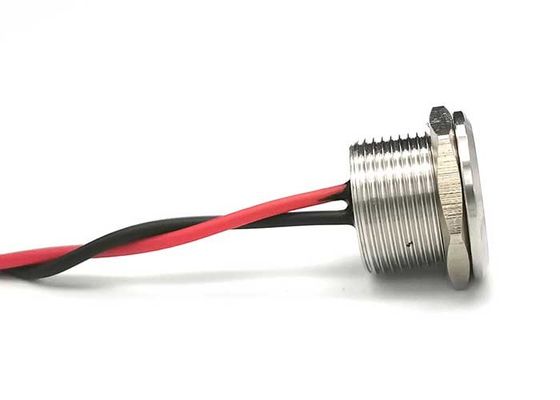

16mm Mini Metal Piezo Touch Switch Self Reset Momentary For Industrial

Negotiable
MOQ
Negotiable
Price
16mm Mini Metal Piezo Touch Switch Self Reset Momentary For Industrial
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Metal
Mounting Hole Diameter: 16mm
Product Type: Piezo Touch Switch
Packing: Paper Box
Head Shape: Flat Round Head
Application: Aniversal
High Light:

Self Reset Piezo Switch Momentary

,

16mm Mini Piezo Switch

,

Piezo Switch For Industrial
Basic Infomation
Place of Origin: CHINA ZHEJIANG
Brand Name: YUESHUN
Certification: ROHS CE
Model Number: YD16-10E/S
Payment & Shipping Terms
Packaging Details: Blister Package+ Foam+Color box Or Upon your request
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

16mm Mini Metal Waterproof Piezo Touch Switch Self-Reset Momentary For Industri





Quick Details:

——16mm mounting hole diameter, flat round head.

——Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).

——Our push buttons are made of anti-damage metal, not easy to fade, excellent performance,IP67 protection level.





                                                               Product   Details



mounting hole size 16mm
the front head shape flat round head
Max.Current 200mA
Max.Voltage 24VDC/AC
IP degree IP68



terminal type 2 wires of 0.22 square,30mm ( Wire length can be customized.)
operating life more than 2000000 cycles
operating temperature -40℃~+70℃
contact resistance ≤ 50mΩ
torque 5-14Nm





Product Size:

16mm Mini Metal Piezo Touch Switch Self Reset Momentary For Industrial 0



Product Display:

16mm Mini Metal Piezo Touch Switch Self Reset Momentary For Industrial 1





Transport & Packing:

16mm Mini Metal Piezo Touch Switch Self Reset Momentary For Industrial 2

Tag:

piezoelectric push button

piezoelectric light switch

piezo push button switch
