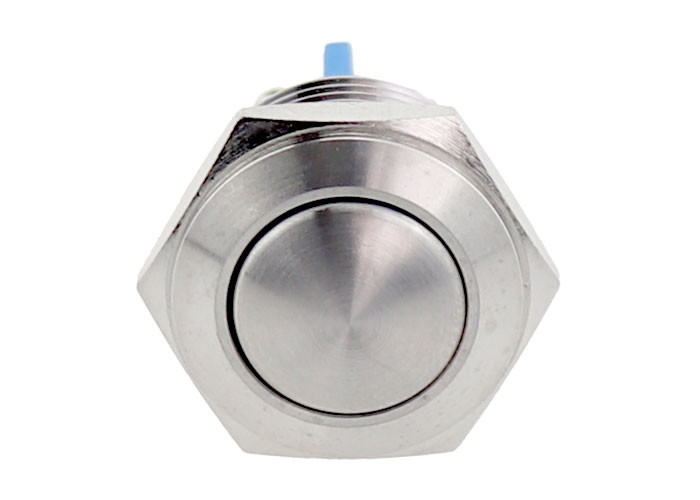

16mm Ring Symbol 110v 220v Led Anti Vandal Push Button Switch Self-locking Momentary push button switch
Product Description
- Stainless steel and waterproof pushbutton switches are the best choice for outdoor machinery, various additional electric machinery. The pushbutton is outstanding in materials and long life.
- There are two choice for Stainless steel: 316 or 304, better corrosiveness resistance and Oxidation resistance; Colors for Zn-Al Alloy: Black, Green, Yellow, Blue, Red. Two choice for Brass: Nickle plate brass or gold plated brass.
- Latching type power buttons : Push it–on, push it again-off;
- Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.
Product Specification
| Model Number | LA16F-11E/S |
| Mounting Hole | 16mm |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Material | Body Material : Stainless Steel |
| Button Material :Stainless Steel | |
| Contact Material : Silver Alloy | |
| Base Material : PBT | |
| The Front Shape | Flat Round Head |
| Terminal Type | Pin Termlmal( 2.8 * 0.5 MM ) |
| Switch Operation | Momentary or Latching are available |
| Contact Configuration | 1NO + 1NC or 2NO + 2NC |
| Mounting panel thickness | 1-10 mm |
| Operation Distance | About 2.8 mm |
| LED Parameters | Led Type : Ring Symbol |
| LED Color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized. |
|
| Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V for choose. |
|
| LED Life : More than 40,000 hours | |
| Protection Level | IP67 |
| Operating Temp |
-20℃～+55℃ |
Size
