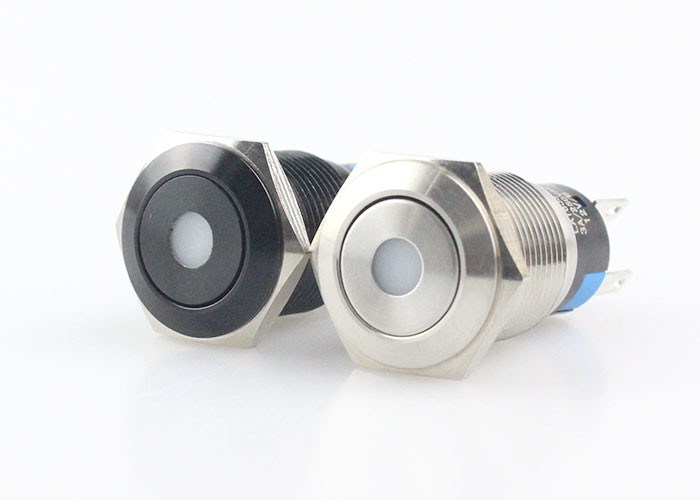

Pin Termlmal 1NO 1NC 16mm Illuminated Pushbutton Switch IP67 protective

Pin Termlmal 1NO 1NC 16mm Illuminated Pushbutton Switch IP67 protective
Features Gallery Product Description Request A Quote
Application: Universal
Contact Configuration: 1NO 1NC
LED Color: Red Blue Green Yellow White Orange Purple
Led Voltage: 3V 6V 12V 24V 36V
Weigh: 30g
Terminal Type: Pin Termlmal
High Light:

Pin Terminal 6mm illuminated pushbutton


16mm illuminated pushbutton


1NO 1NC 16mm illuminated pushbutton

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA16F-11Y
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

Power type Lighted Momentary 16mm Push Button Switch Waterproof Oxidized Aluminum push button


Product Description


- The pushbutton switches are widly used in car motorcycle boat , car modified, computer appliance lamp switch, industrial control, access control,etc.
- The protection level of this push button switch reached IP67, can be widely used in various fields, not easily damaged, can be used for a long time.


Product Specification


Mounting Hole 16mm
Max.Switch Rating Ith : 5A Ui : 250V AC
Material Body Material : Stainless Steel / Nickel Plated Brass / Aluminum
Button Material :Stainless Steel / Nickel Plated Brass / Aluminum
Contact Material : Silver Alloy
Base Material : PBT
The Front Shape Flat Round Head
Terminal Type Pin Termlmal( 2.8 * 0.5 MM )
Switch Operation Momentary or Latching are available
Contact Configuration 1NO + 1NC or 2NO + 2NC
Mounting panel thickness 1-10 mm
Operation Distance About 2.8 mm
LED Parameters Led Type : Power Symbol
LED Color :
Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized.
Led Voltage:
3V 6V 12V 24V 36V 110V 220V 360V for choose.
LED Life : More than 40,000 hours
Protection Level IP67
Operating Temp -20℃~+55℃
