Dot Type LED 16mm Latching Switch High Durability Great For DIY Electric Equipment

Dot Type LED 16mm Latching Switch High Durability Great For DIY Electric Equipment
Features Gallery Product Description Request A Quote
LED Color: Red Blue Green Yellow White Orange Purple
Led Voltage: 3V 6V 12V 24V 36V
Head Shape: High Round Head
Warranty Periodtype: Pin Termlmal
Mounting Panel Thickness: 1-10 Mm
Operation Distance: About 2.8mm
High Light:

16mm illuminated pushbutton


16mm momentary switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA16F-11D
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

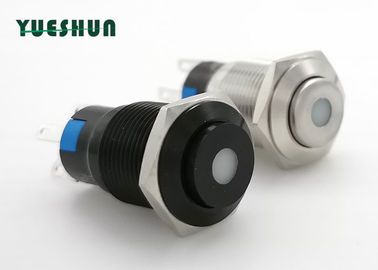

High head Dot Type LED 16mm Push Button Switch Metal Waterproof Latching push switches


Product Description

- Its Anti-vandal Aluminium alloy body allows it to be used in a variety of environments.The metal makes it more durable, resistant to corrosion and has alonger life.
- This waterproof and illuminated pushbuttons are great for the appliance used in wet environment, such as boat, outside door appliance, drink appliance, also great for DIY electric equipment.


Product Specification


Mounting Hole 16mm
Max.Switch Rating Ith : 5A Ui : 250V AC
Material Body Material : Stainless Steel / Nickel Plated Brass / Aluminum
Button Material :Stainless Steel / Nickel Plated Brass / Aluminum
Contact Material : Silver Alloy
Base Material : PBT
The Front Shape High Round Head
Terminal Type Pin Termlmal( 2.8 * 0.5 MM )
Switch Operation Momentary or Latching are available
Contact Configuration 1NO + 1NC or 2NO + 2NC
Mounting panel thickness 1-10 mm
Operation Distance About 2.8 mm
LED Parameters

Led Type : Dot Symbol

LED Color :
Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized.
Led Voltage:
3V 6V 12V 24V 36V 110V 220V 360V for choose.
LED Life : More than 40,000 hours
Protection Level IP67
Operating Temp -20℃~+55℃
