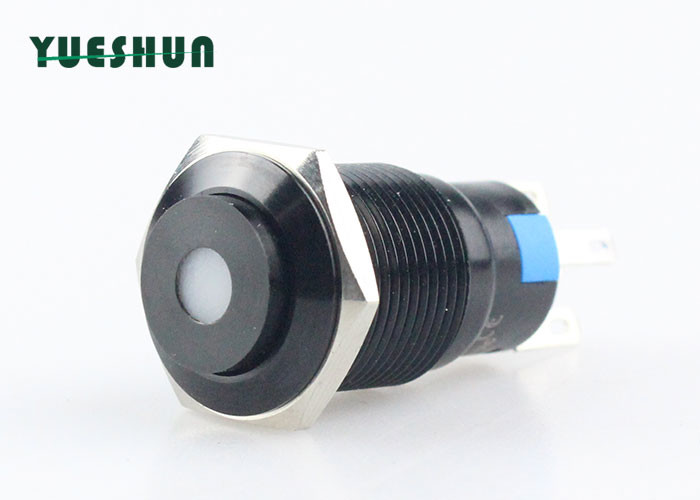

Angle eyes 12v 220v Led illuminated 16mm Push Button Switch Nickel Plated Brass Waterproof switches
Product Description
- Our buttons can be Used in Various Additional Electric Equipment, Reaply, Inside or Outside the Car or Any Circuit Controls. Anti-vandal push buttons are used for electronmagnetic Starter, relay, Horn Button Switch,Car modification, the host computer keys, buttons and instruction button appliances, PC Power Switch or any circuit controls.
- It is a Waterproof IP67 push button switch,with heavy loading,non-magnetic,corrosion resisting,can be uesd indoor and out door.
Product Specification
| Mounting Hole | 16mm |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Material | Body Material : Stainless Steel / Nickel Plated Brass / Aluminum |
| Button Material :Stainless Steel / Nickel Plated Brass / Aluminum | |
| Contact Material : Silver Alloy | |
| Base Material : PBT | |
| The Front Shape | Flat Round Head |
| Terminal Type | Pin Termlmal( 2.8 * 0.5 MM ) |
| Switch Operation | Momentary or Latching are available |
| Contact Configuration | 1NO + 1NC or 2NO + 2NC |
| Mounting panel thickness | 1-10 mm |
| Operation Distance | About 2.8 mm |
| LED Parameters |
Led Type : Angle eyes Symbol |
| LED Color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized. |
|
| Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V for choose. |
|
| LED Life : More than 40,000 hours | |
| Protection Level | IP67 |
| Operating Temp | -20℃～+55℃ |
