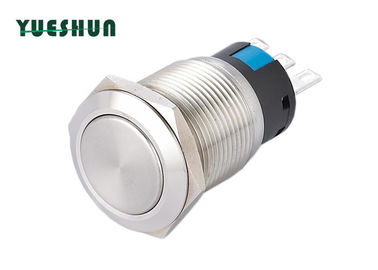

CD Grain Effect Flat Actuator 12V 19mm Momentary Vandal Switch

CD Grain Effect Flat Actuator 12V 19mm Momentary Vandal Switch
Features Gallery Product Description Request A Quote
Pulse Time: Less Than Or Equal To 50ms
Item: Piezo Touch Illuminated Switch
LED Color: Red Green Blue Yellow White Lamp
Led Voltage: 3V 6V 12V 24V
Material: Stainless Steel
Head Shape: Flat Actuator
High Light:

19mm momentary vandal switch


12V momentary vandal switch


19mm anti vandal momentary switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: YD19-10E
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

19mm Flat Actuator Anti Vandal Piezo Switch With 12V 24V LED Light Stainless Steel 1NO Momentary


Product Fatures

- The product is made of stainless steel, CD grain effect, harder, more excellent waterproof and rust resistance.

- It is general purpose buttons are widely used in home appliance industry, automobile modification, access control industry, machinery industry, industrial control instruments and home decoration.

- It use universal AC/DC LED, and there is no difference between the positive pole and the negative pole of the wiring terminal, and the LED has built-in protective resistance, which does not need external connection.


Product .Specification


Model Number


Mounting Hole


Max.Switch Rating

Ith : 200mA Ui : 24V DC

Body Material

Stainless Steel

The Front Shape

Flat Round Head

Terminal Type

0.22 Square wire (wire length can be customized)

Switch Operation


Pulse Time

Less than or equal to 50ms

Mounting panel thickness

1-10 mm

LED Parameters

Led Type: Ring Symbol

LED Color:
Red,Green,Yellow,Orange,Blue,White Can be customized.

Led Voltage:
3V 6V 12V 24V for choose.

LED Life: More than 40,000 hours

Protection Level

IP68 IEC529

Operating Temp


Working Pressure


Mechanical life:

More than1,000,000 cycles

Electrical life:

More than 500,000 cycles

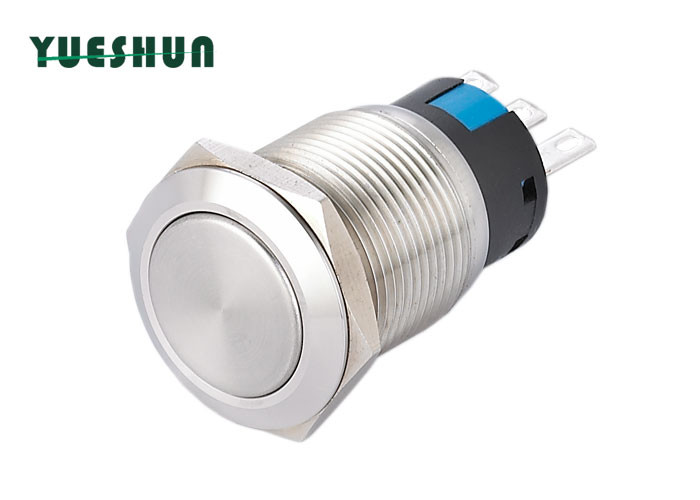

CD Grain Effect Flat Actuator 12V 19mm Momentary Vandal Switch 0
