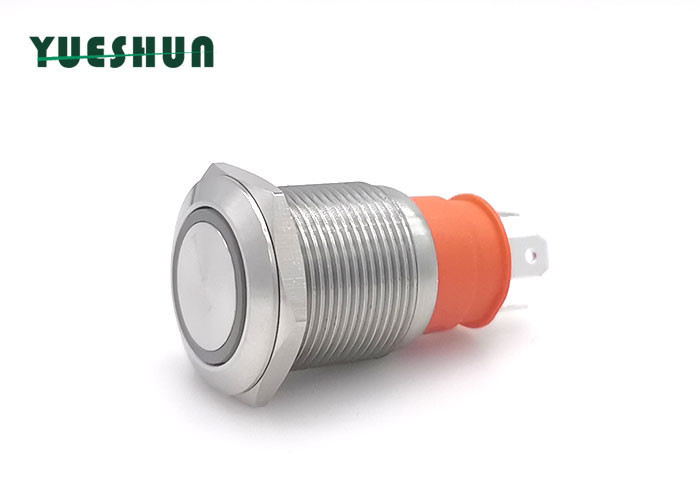

10A High Current Stainless Steel Momentary Anti Vandal Push Button Switch 19mm Normal Open
Product features
-10A High current ,250Vac ;
- The maximum carrying current is 10A. All products have passed various tests;
- The default is normal open 4pin .Normal closed can be custom-made;
- We recommend stainless steel, not easy to fade, durable.Other materials can also be customized;
| Product Description | ||
| Product name | 10A Large current Metal push button switch | |
| Produstion Type | GQ19AF-10E/S | GQ19AF-10E/N |
| Body material | Stainless steel | Stainless steel |
| Button material | Stainless steel | Stainless steel |
| Base material | PBT | PBT |
| Mounting hole size | 19mm | |
| Max. Current | 10A | |
| Max. Voltage | 250V AC | |
| Contact structure | 1NO OR 1NC | |
| Operation type | Momentary or Latching | |
| Head shape | Flat Round Head | |
| Emitting Type | Ring Logo illuminated | |
| Lamp color | Red Green Blue Yellow White | |
| Lamp voltage | 3V 6V 12V 24V 36V 48V 110V 220V 380V | |
| Product Parameter | ||
| Mechanical life | More than 1,000,000 times | |
| Electrical life | ore than 200,000 times | |
| Operating temperature | -25℃- +55℃ | |
| Operating humidity | 45-82%RH | |
| Operating distance | About 2mm | |
| Operating pressure | About 3N | |
| Protection level | IP67 | |
| Insulation resistance | More than 1000MΩ | |
| Contact resistance | ≤ 50mΩ | |
Difference Between self lock and self reset
Company Introduction:
We are specialized in producing high quality metal push button switches, plastic push button switches, Indicators, as well as the accessories. Our products are beautiful, compact, high reliable, and durable, which are widely used in various industrial cabinets, household appliances, automation industries cabinets, etc. We offer all the popular panel cutout size such as 12mm, 16mm, 19mm, 22mm, 25mm, etc. and multiple LED colors such as blue, green, white, yellow, etc. We promise to use premium materials for all our products whatever metal or plastic. We ensure each product is perfect before coming out, so we check and test them one by one. And also we have got CE and RoHS approvals for all of our products.
F&Q
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q4: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
