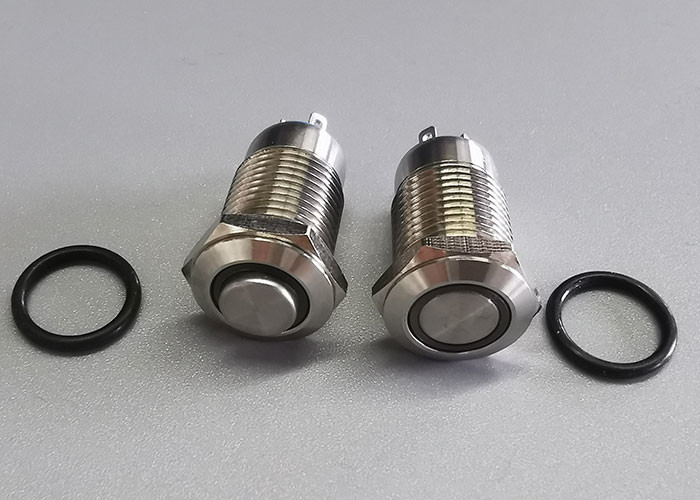

PBT 12mm 12v Stainless Steel Illuminated Anti Vandal Momentary Switch

PBT 12mm 12v Stainless Steel Illuminated Anti Vandal Momentary Switch
Features Gallery Product Description Request A Quote
Led Logo: Ring Logo
LED Life: More Than 40,000 Hours
Head Shape: Flat Round Head / High Round Head
Warranty Period: Two Year
Mounting Panel Thickness: 1-10 MM
Operation Distance: About 2.0 Mm
Protection Grade: IP65
Button Color: Can Be Cutomized
High Light:

12mm illuminated vandal switch


12V illuminated anti vandal switch


PBT 12mm anti vandal momentary switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA12H-11E/S LA12F-11E/S
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

12mm Anti Vandal Push Button Switch 12V 36V , Illuminated self reset Push Button Switch


Product Description

Latching Momentary Push Button Switch:

Momentary switch: press it, release it by hand, and the button will automatically spring back to its original position.
Maintained switch: press it, release it by hand, press it again, and the button will spring back to its original position

Mounting Hole:12mm 1/2" , durable for longer lifetime can up to 500,000 cycles.

Material:High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.

Illuminated or not:Yes

Terminal type:Pin terminals 4 Pin


Product Specification

  Model Number   LA12H-10E  LA12F-11E/S
  Mounting Hole   12 mm
  Max.Switch Rating   Ith : 2A Ui : 36V DC
  Material   Body Material : Stainless Steel
  Button Material :Stainless Steel
  Contact Material : Silver Alloy
  Base Material : PBT
  The Front Shape   High Round Head /Flat Round Head
  Terminal Type   4 Pin Termlmal( 2.0 * 0.5 MM )
  Switch Operation   Momentary or Latching are available
  Contact Configuration   1NO
  Mounting panel thickness   1-10 mm
  Operation Distance   About 2.0 mm
  LED Parameters   Led Type : Ring Symbol
  LED Color :
  Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized.
  Led Voltage:
3V 6V 12V 24V 36V  for choose.
  LED Life : More than 40,000 hours
  Protection Level   IP67
  Operating Temp





Q: Where can we get the specification?
A: Each product has the specificaiton. Contact with our staff if you need.
Q: Where can we get the samples?
A: We can offer 1-3 samples to our customer for free, but not include the transport.
Q: How about the delivery time of samples?
A: If the samples is in stock, we will arrange the samples to send within 48 hours;
If the samples is out of stock, we need to take 1-5 working days to make them.
Q: How about the package?
A: Regularly, 1000pcs in a bag, then in a box.
Q: Can you make the switch as our requirement?
A: Yes, we can. We are professional switch manfacturer with over 20 years research experience.
