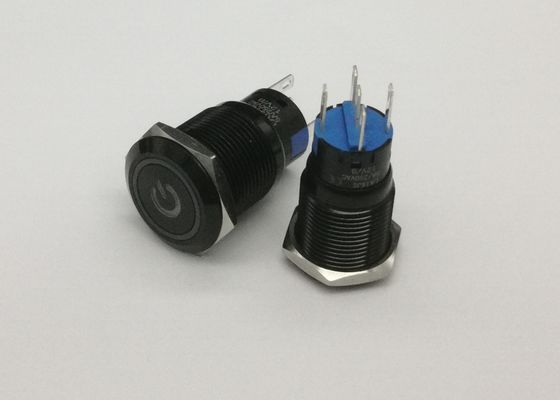

Micro Trip DOT IK09 Anti Vandal Momentary Switch

Micro Trip DOT IK09 Anti Vandal Momentary Switch
Features Gallery Product Description Request A Quote
Led Type: Power Ring Symbol
LED Life: More Than 40,000 Hours
Color: Black
Body Material: Black Oxidized Aluminum
Terminal Material: Silver Alloy
Panel Mounting: 19mm
High Light:

IK09 anti vandal momentary switch


IK09 vandal resistant illuminated switch


DOT anti vandal momentary switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA16F-11EY/L
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

16mm Black aluminum Body Waterproof Anti Vandal Push Button Switch Angle eyes Symbol LED Power press switch


The waterproof push button switch is RoHS certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching). It offers multiple color ring illumination options and multiple voltage options. For LED, it offers one color, bi-color, tri-color options. It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function.


For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel. These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers, and industrial-type applications, etc.


Product Description

- The anti vandal pushbutton switch is produced to withstand physical attack and is applied for any equipments that have requirements above panel resistance to water or dust access such as public kiosks, outside panels or open dashboards.
- There are two choice for Stainless steel: 316 or 304, better corrosiveness resistance and Oxidation resistance; Colors for Zn-Al Alloy: Black, Green, Yellow, Blue, Red. Two choice for Brass: Nickle plate brass or gold plated brass.
- 3a. Latching/Self-locking button: Press the power on, release the hand, and keep the button still (light on); Press the button again to make it pop upand disconnect the power (light off);b. Momentary button: Press the power on, release the hand power on of off, the button spring to original position.


Product Specification

  Model Number   LA16F-11EY/L
  Mounting Hole   19mm
  Max.Switch Rating   Ith : 5A Ui : 250V AC
  Material   Body Material : Aluminum
  Button Material : Aluminum
  Contact Material : Silver Alloy
  Base Material : PBT
  The Front Shape   Flat Round Head
  Terminal Type   Pin Termlmal( 2.8 * 0.5 MM )
  Switch Operation   Momentary or Latching are available
  Contact Configuration   1NO + 1NC or 2NO + 2NC
  Mounting panel thickness   1-10 mm
  Operation Distance   About 2.8 mm
  LED Parameters   Led Type : Power Ring Symbol
  LED Color :
  Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized.
  Led Voltage:
3V 6V 12V 24V 36V 110V 220V 360V for choose.
  LED Life : More than 40,000 hours
  Protection Level   IP67
  Operating Temp



1. When can we get the reply?
Any inquiries will be replied within 24 hours. Our sales team will try our best to support you.

2. What about minimum order quantity?
Generally our MOQ for rocker switches is 10000pcs, and for mirco switches is 50000pcs. Also you can place a Trial orders at first without limit for MOQ.

3. Can customize,modify and develop products according to the design drawing?
Yes,we provide OEM service and can customize products according to the drawing.

4. How will you control product quality?
We strictly control every detail of production, and every product is inspected by our QC team before delivery. Moreover,our production is abided by CQC,CE and RoHs.

5. What about delivery time?
Samples, We will send to you within 3 days after payment received. Production for big quantity needs 7 to 15 days. And it also depends on the product and quantity. If you want to know the exact time. Email us the quantity, we will check the delivery time for you.

6. What about terms of payment?
Payment terms: T/T, west Union and L/C etc
