Lighted Momentary Normally Open Push Button Switch 2A 36V DC Blue Red Color LED Illuminated

Lighted Momentary Normally Open Push Button Switch 2A 36V DC Blue Red Color LED Illuminated
Features Gallery Product Description Request A Quote
Max. Voltage: 36V DC
Max. Current: 2A
Application: Universal
Contact Configuration: Normal Open
Terminal Material: Silver Alloy
Panel Mounting: 19mm
High Light:

momentary action push button


metal push button switch momentary

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS19X illiminated series
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

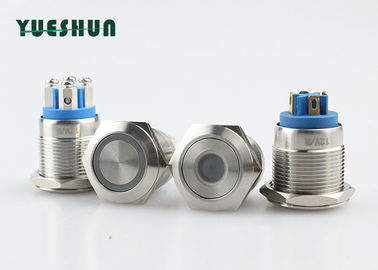

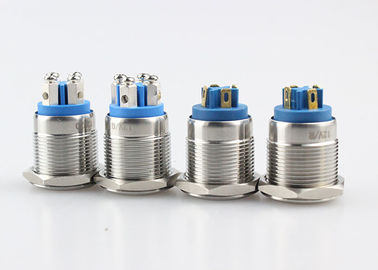

19mm lighted momentary push button switch 2A 36V DC Blue Red Color Led Illuminated switches


Product Description

- Enclosure Material: Stainless Steel;High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
- This waterproof and illuminated pushbuttons are great for the appliance used in wet environment, such as boat, outside door appliance, drink appliance, also great for DIY electric equipment.
- Its Anti-vandal Aluminium alloy body allows it to be used in a variety of environments.The metal makes it more durable, resistant to corrosion and has a longer life.


Product Specification


  Model Number   JS19X illiminated series
  Mounting Hole   19mm
  Max.Switch Rating   Ith : 2A Ui : 36V DC
  Material   Body Material: Stainless Steel
  Button Material:Stainless Steel
  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape   Flat Round Head
  Terminal Type   Pin Termlmal
  Switch Operation   Momentary
  Contact Configuration   1NO
  Mounting panel thickness   1-10 mm
  Operation Distance   About 0.5 mm
  LED Parameters   Led Type: Ring Symbol , Dot Symbol
  LED Color:
  Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
   Led Voltage:
  3V 6V 12V 24V 36V  for choose.
  LED Life: More than 40,000 hours
  Protection Level   IP67
  Operating Temp   -20℃~+55℃
