16mm Normal Closed Momentary Push Button Stainless Steel / Nickel Plated Brass Material

Negotiable
MOQ
Negotiable
Price
16mm Normal Closed Momentary Push Button Stainless Steel / Nickel Plated Brass Material
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Voltage: 36V DC
Max. Current: 2A
Operation Type: IP 67
Operating Temperature: -20℃~+55℃
Weigh: 30g
Terminal Type: Screw Termlmal Or Pin Termlmal
High Light:

momentary contact push button switch

,

metal push button switch momentary

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS16 series
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

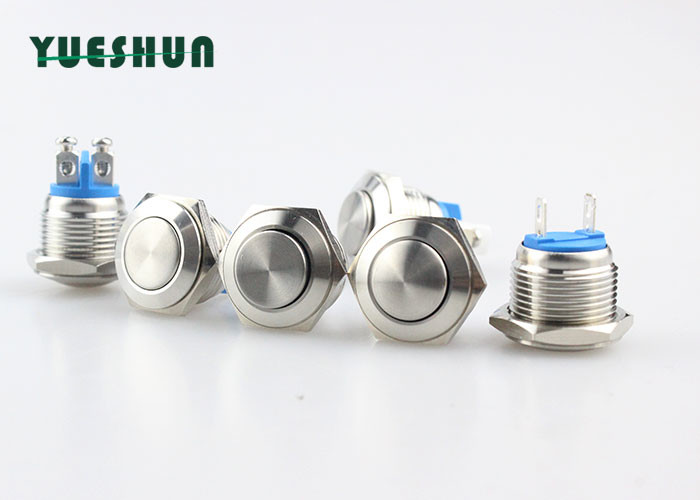

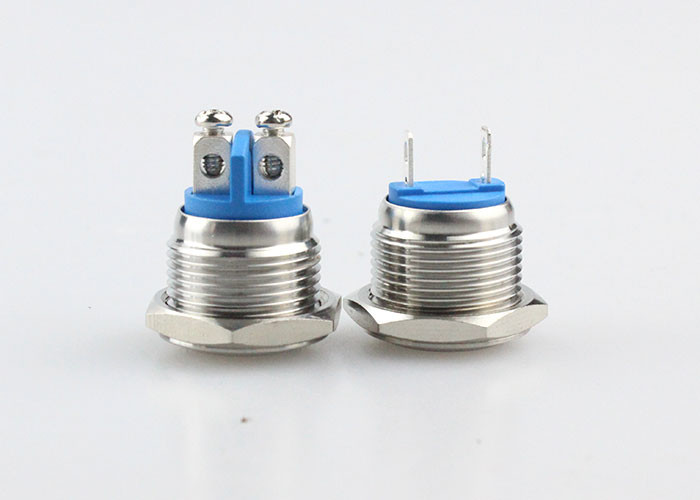

16mm Normal closed Momentary Push Button Switch Stainless Steel or Nickel Plated Brass Material



Product Description

- The Momentary pushbutton swithes are High-grade appearance and nice touch feeling, which is made of 304 stainless steel. If you need other materials please feel free to contact us.
- The pushbutton switches are widly used in car motorcycle boat , car modified, computer appliance lamp switch, industrial control, access control,etc.
- The protection level of this push button switch reached IP67, can be widely used in various fields, not easily damaged, can be used for a long time.



Product Specification



Model Number

JS16 series

Mounting Hole

16mm

Max.Switch Rating

Ith:2A Ui:36V DC

Material

Body Material: Stainless Steel or Nickel Plated Brass

Button Material: Stainless Steel or Nickel Plated Brass

Contact Material: Silver Alloy

Base Material: PBT

Switch Operation

Momentary

Contact Configuration

Normal Open or Normal Closed can be customized.

Mounting panel thickness

1-6 mm

Operation Distance

About 1.5 mm

Protection Level

IP65

Operating Temp

-20℃~+55℃
