Aluminum Metal Push Button Switch Blue Red Dot Type LED Lighted 1NO 1NC

Aluminum Metal Push Button Switch Blue Red Dot Type LED Lighted 1NO 1NC
Features Gallery Product Description Request A Quote
Led Type: Dot Symbol
LED Life: More Than 40,000 Hours
Application: Universal
Contact Configuration: 1NO 1NC
Head Shape: High Round Head
Warranty Period: Two Year
High Light:

automotive push button switches


metal led push button switch

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA16H-11D/L
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

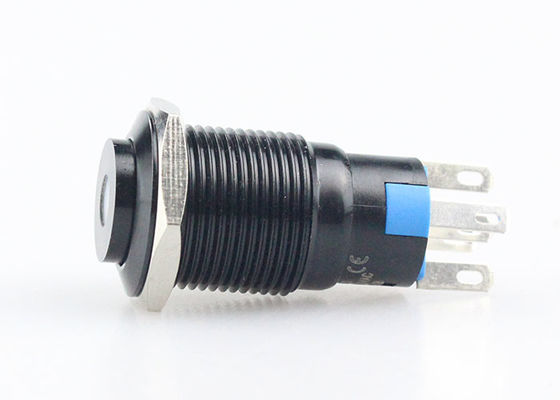

High head 16mm Aluminum Metal Push Button Switch Blue red Dot type Led lighted push button switch


Product Description

- The Anti-vandal pushbutton switches are corrosiveness resistance and Oxidation resistance, which can be used in strict bad environment. The products get all CE and Rohs certification. They can be used in security systems, outside door appliance, car motorcycle boat, etc.
- Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatched;

- Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).
- The color may have different as the difference display, pls understand.


Product Specification

  Model Number   LA16H-11D/L
  Mounting Hole   16 mm
  Max.Switch Rating   Ith : 5A Ui : 250V AC
  Material   Body Material : Black Oxidized Aluminum
  Button Material :Black Oxidized Aluminum
  Contact Material : Silver Alloy
  Base Material : PBT
  The Front Shape   High Round Head
  Terminal Type   5 Pin Termlmal( 2.8 * 0.5 MM )
  Switch Operation   Momentary or Latching are available
  Contact Configuration   1NO + 1NC or 2NO + 2NC
  Mounting panel thickness   1-10 mm
  Operation Distance   About 2.8 mm
  LED Parameters   Led Type : Dot Symbol
  LED Color :
  Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized.
  Led Voltage:
3V 6V 12V 24V 36V 110V 220V 360V for choose.
  LED Life : More than 40,000 hours
  Protection Level   IP67
  Operating Temp



Size Drawing

Aluminum Metal Push Button Switch Blue Red Dot Type LED Lighted 1NO 1NC 0
