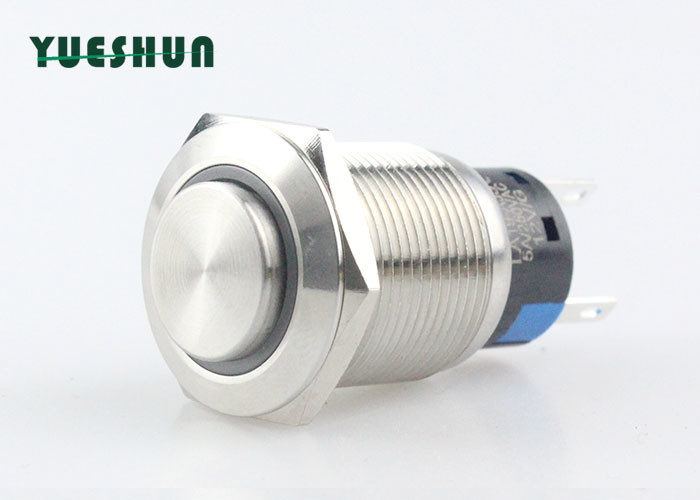

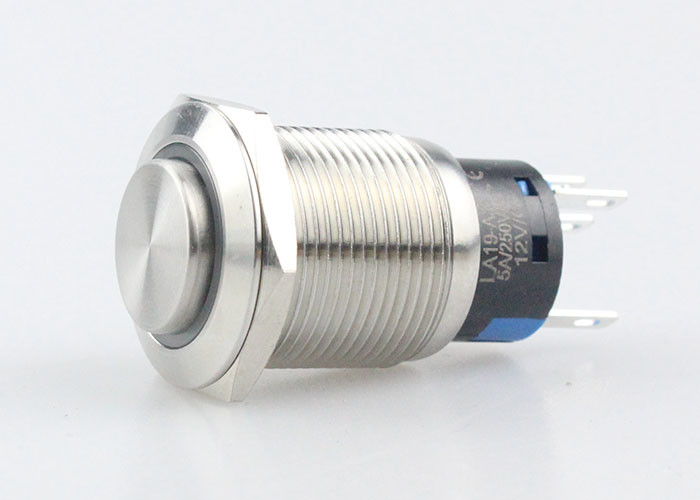

19mm 12v Ring LED Metal Push Button Switch IP67 lighted momentary Latching push button switch
Product Description
- This waterproof and illuminated pushbuttons are great for the appliance used in wet environment, such as boat, outside door appliance, drink appliance, also great for DIY electric equipment.
- Latching/Self-locking Switch: Press the button switch, it works ; Press the button again ,switch stops working .
- Momentary Switch: Press the button switch, it works ; Press the button again ,switch stops working .
- LED color: 1. Red 2. Green 3. Blue 4. Yellow 5. Orange 6. White 7. Purple
- LED voltage: 3V 6V 12V 24V 36V 110V 220V 380V for choose
Product Specification
| Model Number | LA19H-11E/S |
| Mounting Hole | 19 mm |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Material | Body Material : Stainless Steel |
| Button Material :Stainless Steel | |
| Contact Material : Silver Alloy | |
| Base Material : PBT | |
| The Front Shape | High Round Head |

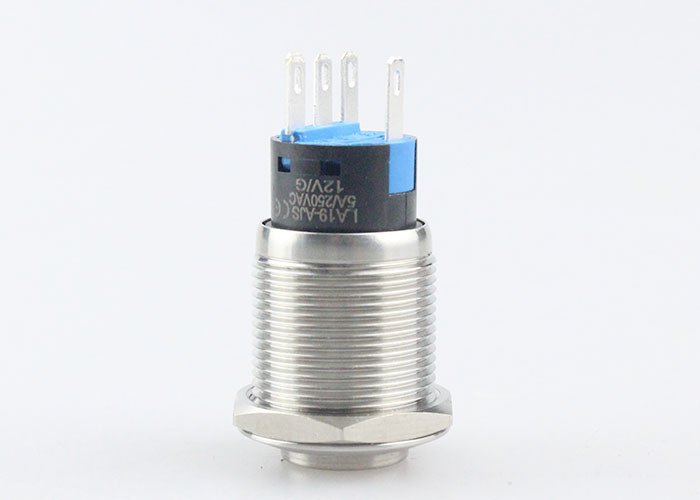

| Terminal Type | 5 Pin Termlmal( 2.8 * 0.5 MM ) |
| Switch Operation | Momentary or Latching are available |
| Contact Configuration | 1NO + 1NC or 2NO + 2NC |
| Mounting panel thickness | 1-10 mm |
| Operation Distance | About 3.1 mm |
| LED Parameters | Led Type : Ring Symbol |
| LED Color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized. |
|
| Led Voltage: 3V 6V 12V 24V 36V 110V 220V 360V for choose. |
|
| LED Life : More than 40,000 hours | |
| Protection Level | IP67 |
| Operating Temp |
-20℃～+55℃ |
