IP67 Push Button Switch Socket Connector , 22mm Push Button Switch Wiring Socket

Negotiable
MOQ
Negotiable
Price
IP67 Push Button Switch Socket Connector , 22mm Push Button Switch Wiring Socket
Features Gallery Product Description Request A Quote
Features
Specifications
Wire Length: 15cm
Mounting Hole: 22mm
Application: PCB, Automotive, Signal Connector, FPC, Audio & Video
Type: Adapter, FPC Connector, Push Push Type, RJ45, Other
Protection Level: IP67
Contact: 6 PIN
High Light:

push button switch wiring socket

,

push button switch connector socket plug

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: D22-15
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

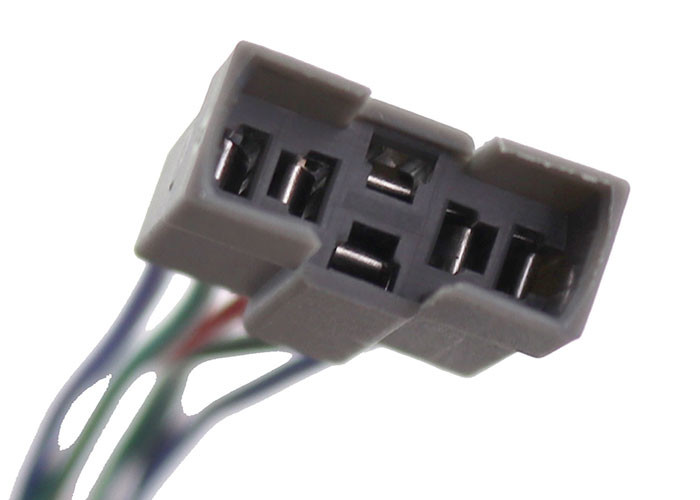

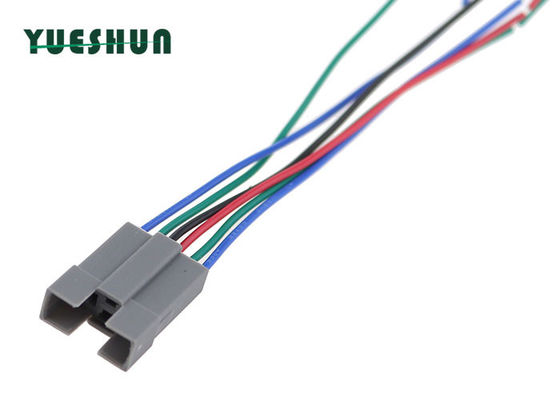

22mm Push Button Switch Socket Connector with 15cm 6pin Cable Harness plug connectors



Notes

 - It's method of use is very convenient, you can use it when you get it.

- If you don't want to weld the buttons, we strongly recommend this connector.



Product Specification

Product Name

22mm push button switch socket

Model Number

D22-15

Mounting Hole

22mm

Material

Plastic

Wire Length

15cm

Wire Number

6

Wire connection guidance

Red

+

Black

-

Green 2

NC

Blue 2

N0

IP67 Push Button Switch Socket Connector , 22mm Push Button Switch Wiring Socket 0

Wire specifications:

0.75mm²,Contact Current Max 5A

Range of Application:

Our factory model starts "JS22" push button switches.Such as JS22F-11E/S,JS22H-11E/S,JS22F-11/S and so on.



  • Size Diagram:

IP67 Push Button Switch Socket Connector , 22mm Push Button Switch Wiring Socket 1

IP67 Push Button Switch Socket Connector , 22mm Push Button Switch Wiring Socket 2

  • How To Use

IP67 Push Button Switch Socket Connector , 22mm Push Button Switch Wiring Socket 3
