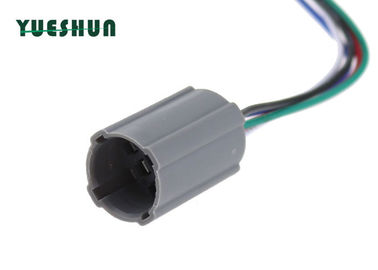

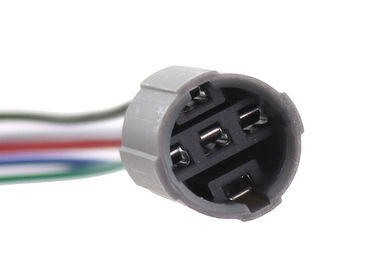

PBT Push Button Switch Socket Connector , Push Button Switch Connector Socket Plug
Product Feature :
- This is a very good connector, with it, you can more easily link the push button switch, no need to weld.
- This connector is specially customized for the 16mm perforated metal button produced by our factory. It is only suitable for the push button produced by our factory. It is not universal
Product Specification
|
Product Name |
16mm push button switch socket |
|
|
Model Number |
D16-15 |
|
|
Mounting Hole |
16mm |
|
|
Material |
Plastic |
|
|
Wire Length |
15cm |
|
|
Wire Number |
5 |
|
|
Wire connection guidance |
Red |
+ |
|
Black |
- |
|
|
Green |
NO |
|
|
Blue |
NC |
|
|
White |
C |
|
|
Wire specifications: |
0.75mm²,Contact Current Max 5A |
|
|
Range of Application: |
Our factory model starts "LA16" push button switches.Such as LA16F-11E/S,LA16F-11Z/S,LA16F-11ZY/L.LA16-11ZEY/N and so on. |
|
How To Use
Size Diagram:
