16mm High Head Metal Push Button Switch , Self Locking Push Button Switch NO NC

Negotiable
MOQ
Negotiable
Price
16mm High Head Metal Push Button Switch , Self Locking Push Button Switch NO NC
Features Gallery Product Description Request A Quote
Features
Specifications
Protection Level: IP67
Mechanical Life: More Than1,000,000 Cycles
Operation Type: Momentary Latching
Operating Temperature: -20℃~+55℃
Application: Universal
Contact Configuration: 1NO 1NC Or 2NO 2NC
High Light:

rugged metal pushbutton

,

automotive push button switches

Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA16H-11/S
Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

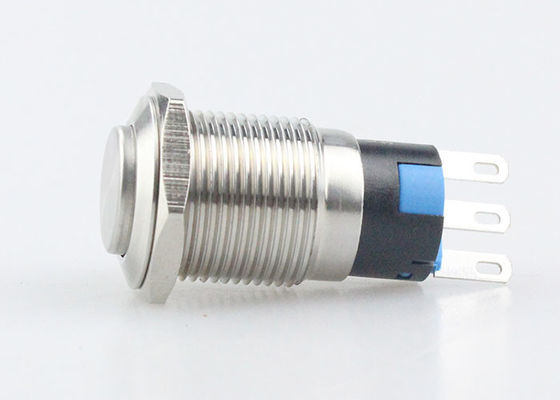

16mm High head button Metal Push Button Switch Normal Open Normal closed self lock momentary pushbutton switch



Product Feature

- The pushbutton switches are widly used in car motorcycle boat , car modified, computer appliance lamp switch, industrial control, access control,etc.
- Latching/Self-locking button: Press the power on, release the hand, and keep the button still (light on); Press the button again to make it pop upand disconnect the power (light off);

- Momentary button: Press the power on, release the hand power on of off, the button spring to original position.
- IP Degree: IP67, IK08. Waterproof Protection Can be Used in Wet or Dusty Environment. 6 means Totally protected against dust,7 means Protected against the effects of temporary immersion between 15cm and 1m.



Product Specification

  Model Number   LA16H-11/S
  Mounting Hole   16mm
  Max.Switch Rating   Ith: 5A Ui: 250V AC
  Material   Body Material: Stainless Steel
  Button Material: Stainless Steel
  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape   High Round Head
  Terminal Type   Pin Termlmal
  Switch Operation   Momentary or Latching are available.
  Contact Configuration   1NO 1NC or 2NO 2NC are available.
  Mounting panel thickness   1-10 mm
  Operation Distance   About 2.8 mm
  Protection Level   IP67
  Operating Temp   -20℃~+55℃



Size Reference

16mm High Head Metal Push Button Switch , Self Locking Push Button Switch NO NC 0
