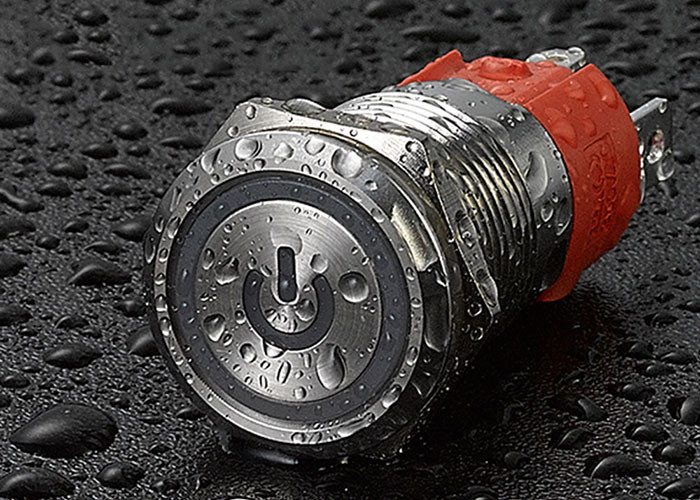

AC Heavy Duty Start 250V 10A Push Button Switch

AC Heavy Duty Start 250V 10A Push Button Switch
AC Heavy Duty Start 250V 10A Push Button Switch AC Heavy Duty Start 250V 10A Push Button Switch

Large Image :  AC Heavy Duty Start 250V 10A Push Button Switch

Product Details:

Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: GQ16AF-10P

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Blister Package+ Foam+Color box Or Upon your request
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Detailed Product Description
Max. Current: 10A Max. Voltage: 250V AC
Emitting Type: Ring Illuminated Connect Type: Pin Termlmal
Lamp Color: Red Green Yellow Blue White Lamp Voltage: 1.8V 3V 6V 12V 24V 36V 48V 110V 220V 380V
High Light:

push button switch 16mm

,

Ring illuminated push button switch

10A 250V AC Heavy Duty Start Push Button Switch 16mm Mounting Hole Power Logo Led Light Pin Termlmal Switches



Product Feature

- 16mm 10 A Current  Power Logo Led light Power switches;

- The LOGO with lights on the head can be customized.Can be customized according to the pattern provided by the customer.

- Can be used for all kinds of mechanical equipment voltage start.LED light color gorgeous, stainless steel permanent fadeless, a long time to keep the metal color.

- Metal material, more difficult to break than plastic material.It can also be waterproof and dustproof, and can be used for a long time in bad outdoor environment.

- Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use.The terminals are very small, need to be very careful when soldering the wires on to them.



Product Description
Product name 10A Large current Metal push button switch
Produstion Type GQ16AF-10P/S GQ16AF-10P/N
Body material Stainless steel Chrome plated brasss
Button material Stainless steel Stainless steel
Base material PBT PBT
Mounting hole size 16mm
Max. Current 10A
Max. Voltage 250V AC
Contact structure 1NO OR 1NC
Operation type Momentary or Latching
Head shape Flat Round Head
Emitting Type Power Logo illuminated
Lamp color Red Green Blue Yellow White
Lamp voltage 3V 6V 12V 24V 36V 48V 110V 220V 380V





Product Parameter
Mechanical life More than 1,000,000 times
Electrical life ore than 200,000 times
Operating temperature -25℃- +55℃
Operating humidity 45-82%RH
Operating distance About 2mm
Operating pressure About 3N
Protection level IP67
Insulation resistance More than 1000MΩ
Contact resistance ≤ 50mΩ



Size

AC Heavy Duty Start 250V 10A Push Button Switch 0

AC Heavy Duty Start 250V 10A Push Button Switch 1
