Home ProductsAnti Vandal Push Button Switch

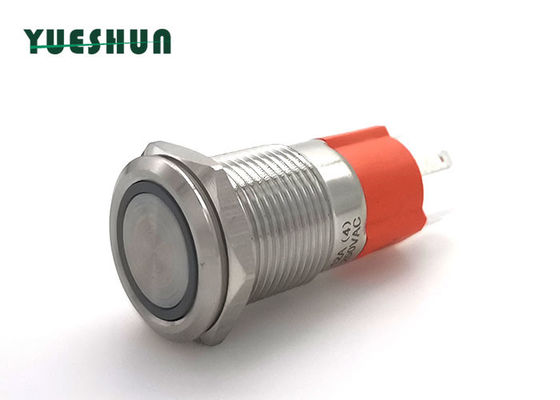

16mm 10A High Current Pushbutton Switches 1NO Ring LED Symbol Chrome Plated Brass

Certification
China Yueqing Yueshun Electric Co., Ltd. certification
China Yueqing Yueshun Electric Co., Ltd. certification
Customer Reviews
This is the best supplier I ever found from China. Thank you so much for providing push button switches with good quality.

—— Steve

The quality of the push button switches is very good. I hope your business is doing better.

—— Linda

I'm Online Chat Now

16mm 10A High Current Pushbutton Switches 1NO Ring LED Symbol Chrome Plated Brass

16mm 10A High Current Pushbutton Switches 1NO Ring LED Symbol Chrome Plated Brass
16mm 10A High Current Pushbutton Switches 1NO Ring LED Symbol Chrome Plated Brass 16mm 10A High Current Pushbutton Switches 1NO Ring LED Symbol Chrome Plated Brass 16mm 10A High Current Pushbutton Switches 1NO Ring LED Symbol Chrome Plated Brass

Large Image :  16mm 10A High Current Pushbutton Switches 1NO Ring LED Symbol Chrome Plated Brass

Product Details:

Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: GQ16AF-11E

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 working days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 10000Pcs/Day
Detailed Product Description
Max. Current: 10A Max. Voltage: 250V AC
Operation Type: Momentary Latching Operating Temperature: -20℃~+55℃
Product Name: Metal Push Button Switch Product Function: 10A High Current Push Button Switch
High Light:

pc push button switch

,

push button doorbell switch



16mm 10A High Current Pushbutton Switches 1NO Ring LED Symbol Chrome Plated Brass



Product Description



- This is a 16MM large current 10A IP67 waterproof self locking / Momentary metal push button switch.
- This metal push buttons has ring LED Symbol and power LED Symbolfor choose.Its head can also be customized with a high head.
- The button has a strong metallic feel.Protection level up to IP67, Mechanical life more than 1 million times , not easy to damage.
- The push button switch is available in a variety of materials: stainless steel, Chrome plated brass.Also can make aluminum alloy material, plated with any color you want.



Product Specification



  Model Number   GQ16AF-11E
  Mounting Hole   16mm
  Max.Switch Rating   Ith : 10A Ui : 250V AC
  Material   Body Material : stainless steel
  Button Material :stainless steel
  Contact Material : Silver Alloy
  Base Material : PBT
  The Front Shape   Flat Round Head ( High head )
  Terminal Type   4 Pin Termlmal
  Switch Operation   Momentary or Latching are available
  Contact Configuration   1NO
  LED Parameters   Led Type : Ring Symbol
  LED Color :
  Red,Green,Yellow,Blue,White,all Can be customized.
  Led Voltage:
1.8V 3V 6V 12V 24V 36V 48V 110V 220V for choice.
  LED Life : More than 40,000 hours
  Protection Level   IP67
  Operating Temp

  -20℃~+55℃



16mm 10A High Current Pushbutton Switches 1NO Ring LED Symbol Chrome Plated Brass 0
