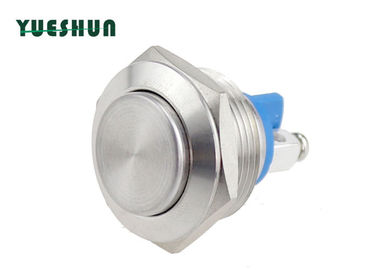

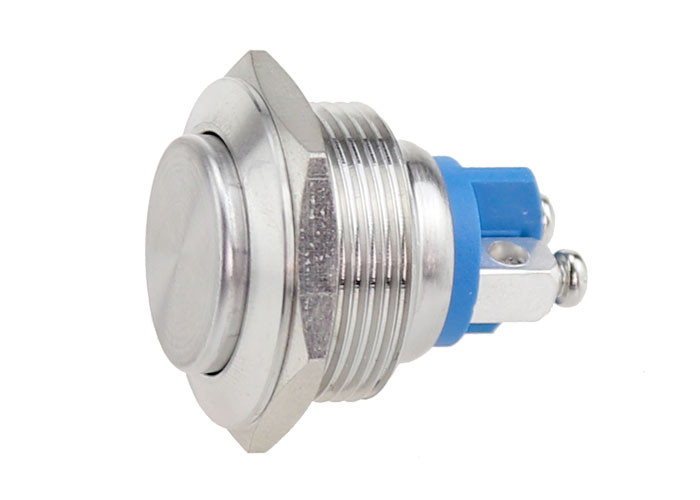

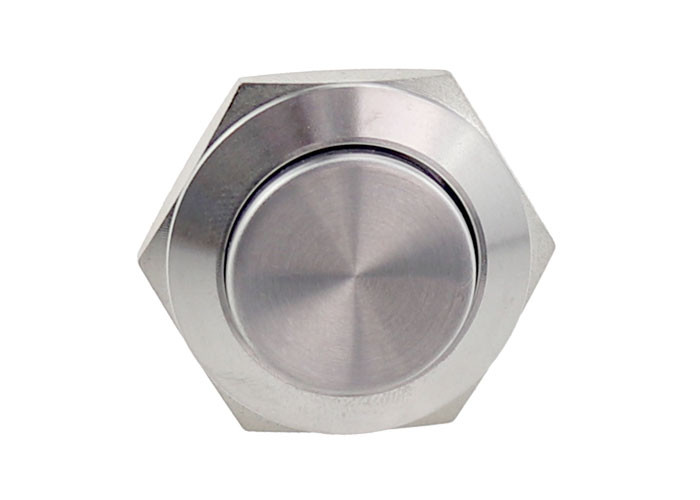

Momentary Car Push Button Switch Anti Vandal Stainless Steel 19mm High Head

Momentary Car Push Button Switch Anti Vandal Stainless Steel 19mm High Head
Momentary Car Push Button Switch Anti Vandal Stainless Steel 19mm High Head Momentary Car Push Button Switch Anti Vandal Stainless Steel 19mm High Head Momentary Car Push Button Switch Anti Vandal Stainless Steel 19mm High Head

Large Image :  Momentary Car Push Button Switch Anti Vandal Stainless Steel 19mm High Head

Product Details:

Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS19H-10/S

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Detailed Product Description
Max. Current: 2A Max. Voltage: 36V DC
Color: Silver Body Material: Stainless Steel
Head Shape: High Round Head Warranty Period: One Year
High Light:

car horn push button switch

,

push button doorbell switch

Stainless Steel 19mm High head Anti Vandal Push Button Switch Normal Open Momentary Car switch



Product Description



- Anti-vandal Push Button Switch can be applied to car motorcycle modificine ,electric equipment ,appliance,machine , home Lamps and so on, whcich is durable and decent.
- Momentary Waterproof push button switches are made of 304 Stainless Steelor Nickel Plated Brass.
- Momentary Switch: Press the button switch, it works ; Press the button again ,switch stops working .



Product Specification

  Model Number   JS19H-10/S
  Mounting Hole   19mm
  Max.Switch Rating   Ith:2A Ui:36V DC
  Material   Body Material: Stainless Steel
  Button Material: Stainless Steel
  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape  High Round Head
  Terminal Type   Screw Termlmal
  Switch Operation   Momentary
  Contact Configuration   Normal Open or Normal Closed all can be customized.
  Mounting panel thickness   1-6 mm
  Operation Distance   About 1.5 mm
  Protection Level   IP65
  Operating Temp   -20℃~+55℃
  Mechanical life:   More than1,000,000 cycles
  Electrical life:   More than 200,000 cycles



Size
