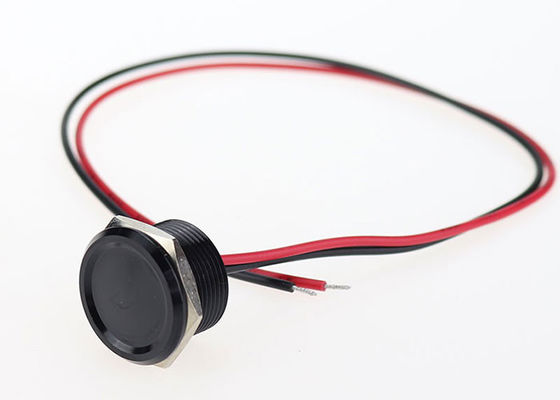

19mm No LAMP Piezo Touch Switch Aluminum Black Body Waterproof Pressure Button switches
Product Introduce
- The push button switch is a 19m open, black case with no lamp.
- When using this piezoelectric switch, it is important to remember that the input current should not exceed 100 mA and the input voltage should be maintained between 3 and 24VDC.
- Each of our products is equipped with waterproof type 0 rubber ring, which is waterproof, but can not be used in water.Otherwise, the product will not work properly soon
- This Piezo switch is widely used in Petroleum Dispensing, Mining Equipment, Access Control and so on.
Product .Specification
|
Model Number |
YD19-10-B |
|
Mounting Hole |
19mm |
|
Max.Switch Rating |
Ith : 100mA Ui : 24V DC |
|
Body Material |
Aluminum |
|
Body Color |
Black |
|
The Front Shape |
Flat Round Head |
|
Terminal Type |
0.22 Square wire (wire length can be customized) |
|
Switch Operation |
Momentary |
|
Pulse Time |
Less than or equal to 50ms |
|
Mounting panel thickness |
1-8 mm |
|
Protection Grade |
IP68 IEC529 |
|
Working Humidity |
10%-90% |
|
Operating Temp |
-40℃～+70℃ |
|
Working Pressure |
3~8N |
|
Operating life: |
More than 500,000 cycles |
Size
