High Power Efficiency 24V 12V Momentary Switch Waterproof 16mm Ring Type Illuminated
Negotiable
MOQ
Negotiable
Price
High Power Efficiency 24V 12V Momentary Switch Waterproof 16mm Ring Type Illuminated
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS16 illiminated series
High Light:

momentary contact push button switch

,

momentary action push button

Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Specifications
Max. Voltage: 36V DC
Max. Current: 2A
Operation Type: IP 67
Operating Temperature: -20℃~+55℃
Mounting Panel Thickness: 1-6 Mm
Operation Distance: About 0.5 Mm
Product Description

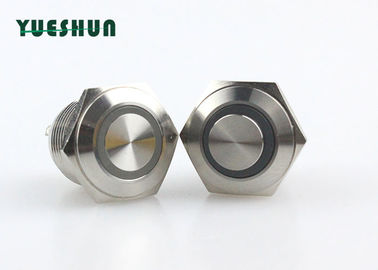

16mm Ring type Illuminated Momentary Push Button Switch 12v 24v mini push button light switch



Product Description

- Illuminated push button switches are made of 304 Stainless Steel, 316 Stainless Steel, Black Aluminum, Nickel Plated Brass. Gold plated brass and so on.
- Our buttons can be Used in Various Additional Electric Equipment, Reaply, Inside or Outside the Car or Any Circuit Controls. Anti-vandal push buttons are used for electronmagnetic Starter, relay, Horn Button Switch,Car modification, the host computer keys, buttons and instruction button appliances, PC Power Switch or any circuit controls.
- It is a Waterproof IP67 push button switch,with heavy loading,non-magnetic,corrosion resisting,can be uesd indoor and out door.



Product Specification



  Model Number   JS16 illiminated series
  Mounting Hole   16mm
  Max.Switch Rating   Ith : 2A Ui : 36V DC
  Material   Body Material: Stainless Steel
  Button Material:Stainless Steel
  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape   Flat Round Head
  Terminal Type   Pin Termlmal
  Switch Operation   Momentary
  Contact Configuration   1NO
  Mounting panel thickness   1-6 mm
  Operation Distance   About 0.5 mm
  LED Parameters   Led Type: Ring Symbol
  LED Color:
  Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
   Led Voltage:
  3V 6V 12V 24V 36V  for choose.
  LED Life: More than 40,000 hours
  Protection Level   IP67
  Operating Temp   -20℃~+55℃
