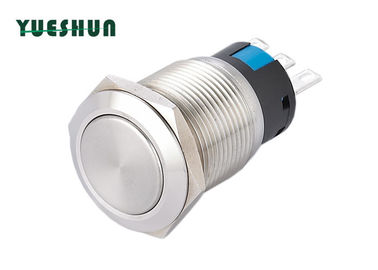

Door Bell Self Locking Push Button Switch 5A 250V AC 19MM Panel Mounting
Negotiable
MOQ
Negotiable
Price
Door Bell Self Locking Push Button Switch 5A 250V AC 19MM Panel Mounting
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: LA19F-11/S
High Light:

car horn push button switch

,

push button doorbell switch

Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Specifications
Color: Silver
Body Material: Stainless Steel
Protection Level: IP67
Mechanical Life: More Than1,000,000 Cycles
Terminal Material: Silver Alloy
Panel Mounting: 19MM
Product Description

Self-locking Momentary 19MM Anti Vandal Push Button Switch 5A 250V AC Stainless Steel door bell push button



Product Description

- We get CE and Rohs for all our push button switches. Our factory are focused on manufacturing pushbutton switches and indicator. We ensure you 2-year warranty. The products are applied for all kinds of power switch, outdoo appliaces, wet environment equipments.
- This is Metal push button,which is durable for longstanding press, not easily damaged. You can ask for the fllowing materials: stainless steel, Gold plated brass , Nickel Plated Brass, Zn-Al Alloy.
- Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatched;

- Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).





Product Specification

  Model Number   LA19F-11/S
  Mounting Hole   19mm
  Max.Switch Rating   Ith : 5A Ui : 250V AC
  Material   Body Material: Stainless Steel
  Button Material: Stainless Steel
  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape  Flat Round Head
  Terminal Type   Pin Termlmal ( 2.5 * 0.5 mm )
  Switch Operation   Momentary or Latching are available
  Contact Configuration   1NO + 1NC or 2NO + 2NC are available
  Mounting panel thickness   1-10 mm
  Operation Distance   About 3.1 mm
  Protection Level   IP67
  Operating Temp   -20℃~+55℃



Size

Door Bell Self Locking Push Button Switch 5A 250V AC 19MM Panel Mounting 0
