22MM Momentary Anti Vandal Push Button Switch 4 Pins 1NO 1NC 2NO 2NC Available
1 piece
MOQ
Negotiable
Price
22MM Momentary Anti Vandal Push Button Switch 4 Pins 1NO 1NC 2NO 2NC Available
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Wenzhou, China
Brand Name: YUESHUN
Certification: CE RoHS
Model Number: JS22F-11/S
High Light:

pc push button switch

,

push button doorbell switch

Payment & Shipping Terms
Packaging Details: The product is packed in foam box to prevent damage during transportation.
Delivery Time: 3-7 weekdays
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Specifications
Terminal Material: Gold Plated Silver Alloy
Panel Mounting: 22mm
Application: Universal
Contact Configuration: 1NO 1NC Or 2NO 2NC
Warranty Period: One Year
LED Type: Unilluminated
Product Description

IP67 22MM Momentary Anti Vandal Push Button Switch Stainless Steel 6pin 1NO 1NC 2NO 2NC are available



Product Description



- This is a very easy to install button , wich can be installed on the 22MM hole in the installation panel.
- Adopt the material of 304 stainless steel, the protection level is up to IP67, the shell has good texture and good gloss.
- Types with lights can be customized, such as ring, point, power supply, etc.If the quantity is large, you can also customize the text, graphics.



Product Specification

  Model Number   JS22F-11/S
  Mounting Hole   22mm
  Max.Switch Rating   Ith : 5A Ui : 250V AC
  Material   Body Material: 304 Stainless Steel
  Button Material: 304 Stainless Steel
  Contact Material: Silver Alloy
  Base Material: PBT
  The Front Shape  Flat Round Head
  Terminal Type   4 Pin Termlmals ( 2.5 * 0.5 mm )
  Switch Operation   Momentary or Latching are available
  Contact Configuration   1NO + 1NC or 2NO + 2NC are available
  Mounting panel thickness   Momentary:1-8 mm; Latching : 1-13 mm
  Operation Distance   About 0.5 mm
  Protection Level   IP67
  Operating Temp   -20℃~+55℃

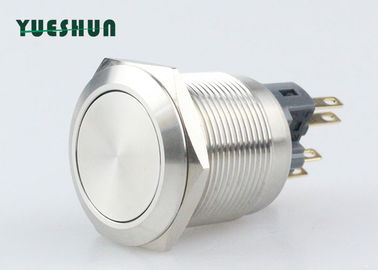

22MM Momentary Anti Vandal Push Button Switch 4 Pins 1NO 1NC 2NO 2NC Available 0

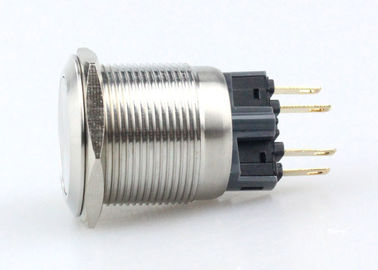

22MM Momentary Anti Vandal Push Button Switch 4 Pins 1NO 1NC 2NO 2NC Available 1

F&Q:

1. Q:Do you have a catalog? Can you send  the catalog to me for reference ?

A: Yes , We have product catalog.Please contact us on line or send an Email for sending the catalog.



2.Q: Can you provide samples? Are the samples free ?

A: Yes, we can provide samples. Normally, we provide 1-3pcs free samples for testing or quality checking.But you have to pay for the shipping cost. If you need many items, or need more qty for each item, we will charge for the samples.



3.Q: What's the difference between Momentary and Latching(ON-OFF)?

A: Latching type power buttons : Push it–on, push it again-off;

    Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.
