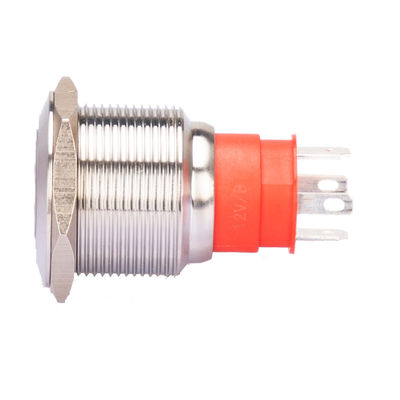

22mm Ip67 Push Button Switch Ring Led Illuminated High Current Self Reset Lock Steel
Negotiable
MOQ
Negotiable
Price
22mm Ip67 Push Button Switch Ring Led Illuminated High Current Self Reset Lock Steel
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA ZHEJIANG
Brand Name: YUESHUN
Certification: ROHS CE
Model Number: LD22-10E/S
High Light:

Lock Steel Button Switch Led Illuminated

,

22mm Button Switch Ring Led Illuminated

,

High Current Button Switch Led Illuminated

Payment & Shipping Terms
Packaging Details: Blister Package+ Foam+Color box Or Upon your request
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Specifications
Mounting Hole Diameter: 22mm
LED Voltage: 3V / 6V / 12V / 24V / 36V / 110V / 220V / 380V
Switch Combination: 1NO
Terminal Type: 4 Pin Terminal
LED Color: Red / Green / Blue / Yellow / White / Orange / Purple
Material: Stainless Steel
Product Description

22mm Ip67 High Current Self-Reset Lock Steel Push Button Switch Ring Led Illuminated



Quick Details:



——Easy to Install, there's even a rubber gasket to keep water out of the enclosure. But they can not be submerged in the water.

——Latching/Self-locking button: Press the power on, release the hand, and keep the button still (light on); Press the button again to make it pop upand disconnect the power (light off)

       Momentary button: Press the power on, release the hand power on of off, the button spring to original position.

——LED Voltage (AC & DC General ) 3V / 6V / 12V / 24V / 36V / 110V / 220V / 380V

  LED Color : Red / Green / Blue / Yellow / White / Orange / Purple







                                                    Product Parameter



mounting hole size 19mm
the front head shape high  head
body material stainless steel
Max.Current 10/15/20A
Max.Voltage 250VAC
terminal type 4 pin terminal
operation type momentary/Latching
Mechanical life more than 1000000 cycles
Contact Configuration 1NO (1NC can be customized; )
IP Rating ip67
LED Type ring
LED Color Red / Green / Blue / Yellow / White / Orange / Purple
LED Voltage 3V / 6V / 12V / 24V / 36V / 110V / 220V / 380V
LED Life more than 40000 lifes




Product size:



22mm Ip67 Push Button Switch Ring Led Illuminated High Current Self Reset Lock Steel 0

PIN Terminal:



4 Terminal Pin
LED Pin ("+",:-:), 2.8*0.5mm
Switch Pin (NO-NO), 4.8*0.5mm



 22mm Ip67 Push Button Switch Ring Led Illuminated High Current Self Reset Lock Steel 1




Product display:



LED Color :
Red / Green / Blue / Yellow / White / Orange / Purple

22mm Ip67 Push Button Switch Ring Led Illuminated High Current Self Reset Lock Steel 2



F&Q:

    Q: Could I put my own logo on it?

    A: Sure,customers' logo can be printed or put on the items.



    Q : What about your delivery time?

    A: We have a lot of products in stock.We can send the stock products in 3 work days.If without stock,or stock is not enough, we will check the delivery time with you."



     Q : Can you make customized products and customized packing?

     A: Yes.We made a lot of customized products for our customer before.And we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.



     Q:Do you have a catalog? Can you send me the catalog to me for checking them ?

     A: Yes , We have product catalog.Please contact us on line or send an Email for sending the catalog.



About our company:



            we are a manufacturer of all kinds of push button switches. Our push button switches are used for a variety of applications and include illuminated push buttons, key lock switches,signal lamps, selector switches, illuminated selector switches, emergency push buttons, illuminated emergency push buttons, and push button accessories.

           We strive to explore the market demand, to find the most market demand button products, to create the most satisfied customers products, strive to walk in the forefront of the trend, strive to build Yueshun brand, brilliant Yueshuni.Welcome customers to cooperate with us.
