Flat Head Push Button Switch Led Illuminated Stainless Steel Ip67 Micro 4pins Momentary
Negotiable
MOQ
Negotiable
Price
Flat Head Push Button Switch Led Illuminated Stainless Steel Ip67 Micro 4pins Momentary
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA ZHEJIANG
Brand Name: YUESHUN
Certification: ROHS CE
Model Number: WD25-10E/S
High Light:

flat head Switch Illuminated

,

4pins Momentary Switch Illuminated

,

Ip67 Micro Switch LED Illuminated

Payment & Shipping Terms
Packaging Details: Blister Package+ Foam+Color box Or Upon your request
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Specifications
Color: Sliver
Head Shape: Flat Head
Material: Stainless Steel
Terminal Type: 4 Pin Terminal
Led Voltage: 3-24v
Max.Current: 500mA
Product Description

Big Head Stainless Steel Ip67 Micro Push Button Switch Led Illuminated 4pins Momentary



Quick Details:

——The lamp bead has a service life of up to 40,000 hours.

——LED Voltage (AC & DC General ) 3V / 6V / 12V / 24V LED Color : Red / Green / Blue / Yellow / White / Orange

——It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.





                                                     Product Parameter





mounting hole size 25mm
the front head shape flat head
body material gold plated brass
Max.Current 500mA
Max.Voltage 24VDC
terminal type 4 pin terminal
operation type momentary
operating temperature -20℃~+55℃



led type ring symbol
led voltage 3v-24v
led color  Red Green Blue Yellow White
led life more than 40000 hours



Product size:

Flat Head Push Button Switch Led Illuminated Stainless Steel Ip67 Micro 4pins Momentary 0





Product display:

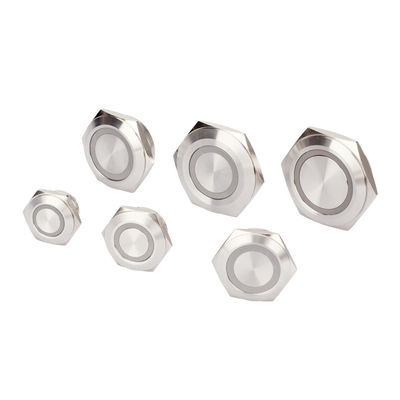

Flat Head Push Button Switch Led Illuminated Stainless Steel Ip67 Micro 4pins Momentary 1

Flat Head Push Button Switch Led Illuminated Stainless Steel Ip67 Micro 4pins Momentary 2

    The color may have different as the difference display, pls understand.



F&Q:

     ——Q:What are your working hours? When can I contact you?

     ——A:The normal working time of our customer service is 9:00-18:00 Beijing time, but if you have any questions, please feel free to contact us and we will give you a reply as soon as possible.





     ——Q : Can you make customized products and customized packing?

     ——A: Yes.We made a lot of customized products for our customer before.And we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.



     ——Q : What about your delivery time?

     ——A: We have a lot of products in stock.We can send the stock products in 3 work days.If without stock,or stock is not enough, we will check the delivery time with you



Transport:



  We have cooperated with DHL, UPS, fedex and other logistics companies.It can greatly save the transportation cost of products.

Flat Head Push Button Switch Led Illuminated Stainless Steel Ip67 Micro 4pins Momentary 3
