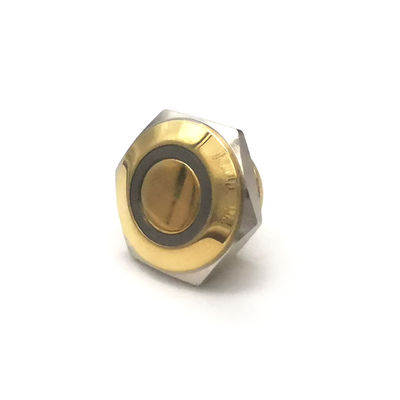

Brass Push Button Switch Ring Led Illuminated Waterproof Micro 22mm Self Reset
Negotiable
MOQ
Negotiable
Price
Brass Push Button Switch Ring Led Illuminated Waterproof Micro 22mm Self Reset
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA ZHEJIANG
Brand Name: YUESHUN
Certification: ROHS CE
Model Number: WD22-10E/S
High Light:

Push Button Switch Ring Led Illuminated

,

22mm Self Reset Push Button Illuminated

,

Brass Push Button Illuminated

Payment & Shipping Terms
Packaging Details: Blister Package+ Foam+Color box Or Upon your request
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Specifications
Color: Gold
Head Shape: Flat Head
Material: Gold Plated Brass
Terminal Type: 4 Pin Terminal
Led Voltage: 3-24v
Max.Current: 500mA
Product Description

Gold Plated Brass Waterproof Micro Push Button Switch Ring Led Illuminated 22mm Self-Reset



Quick Details:

——22mm mounting hole sizse, 1NO-normal open.

——LED Voltage (AC & DC General ) 3V / 6V / 12V / 24V LED Color : Red / Green / Blue / Yellow / White / Orange

——It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.





                                                     Product Parameter





mounting hole size 22mm
the front head shape flat head
body material gold plated brass
Max.Current 500mA
Max.Voltage 24VDC
terminal type 4 pin terminal
operation type momentary
operating temperature -20℃~+55℃



led type ring symbol
led voltage 3v-24v
led color  Red Green Blue Yellow White
led life more than 40000 hours



Product size:

Brass Push Button Switch Ring Led Illuminated Waterproof Micro 22mm Self Reset 0





Product display:



Brass Push Button Switch Ring Led Illuminated Waterproof Micro 22mm Self Reset 1

Brass Push Button Switch Ring Led Illuminated Waterproof Micro 22mm Self Reset 2

    The color may have different as the difference display, pls understand.



F&Q:

     1:Q : What about your delivery time?

           A: We have a lot of products in stock.We can send the stock products in 3 work days.If without stock,or stock is not enough, we will check the delivery time with you



     2:Q: What kind of payment do you accept ? Can I pay RMB ?

          A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem.



     3:Q:How long is your products Warranty Period?

          A: Generally, 1~2 years(After shipment date).





Transport:

Brass Push Button Switch Ring Led Illuminated Waterproof Micro 22mm Self Reset 3
