Ip67 Momentary Latching Led Illuminated Push Button Switch Waterproof 19mm For Car

Negotiable
MOQ
Negotiable
Price
Ip67 Momentary Latching Led Illuminated Push Button Switch Waterproof 19mm For Car
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel
Size: 19mm
Pin: 4 Pins
Head Shape: Flat Head
Voltage: 250v
Led Color: Red,Green,Yellow,Orange,Blue,White,Purple
High Light:

Ip67 illuminated push button switches

,

Momentary Latching Led Illuminated Push Button

,

19mm led illuminated pushbutton For Car

Basic Infomation
Place of Origin: CHINA ZHEJIANG
Brand Name: YUESHUN
Certification: ROHS CE
Model Number: LD19-10E/S
Payment & Shipping Terms
Packaging Details: Blister Package+ Foam+Color box Or Upon your request
Delivery Time: 3-7 work days
Payment Terms: T/T to our company account or by paypal
Supply Ability: 5000Pcs/Day
Product Description

Ip67 Stainless Steel Push Button Switch Led Illuminated Waterproof 19mm For Car



Quick Details:

——Our push buttons are made of anti-damage metal, not easy to fade, excellent performance, IP67 protection level.

——self-locking button-Press the power on, release the hand, and keep the button still (light on); Press the button again to make it pop upand disconnect the power (light off).

——self-reset button-Press the power on, release the hand power on of off, the button spring to original position.





                                                          Product Parameter

switch type push button switch
head type flat head
diamter 19mm
led color blue red yellow white green
led voltage 3V 6V 12V 24V 220V
contact resistance ≤50Ω
Max.Current 10A
Max.Voltage 250V

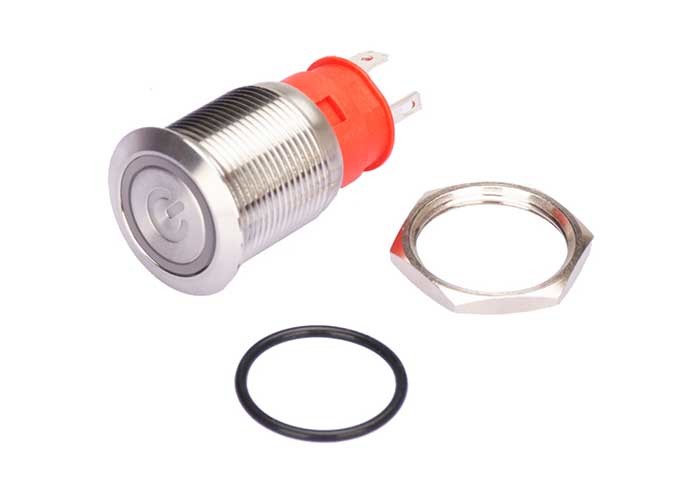

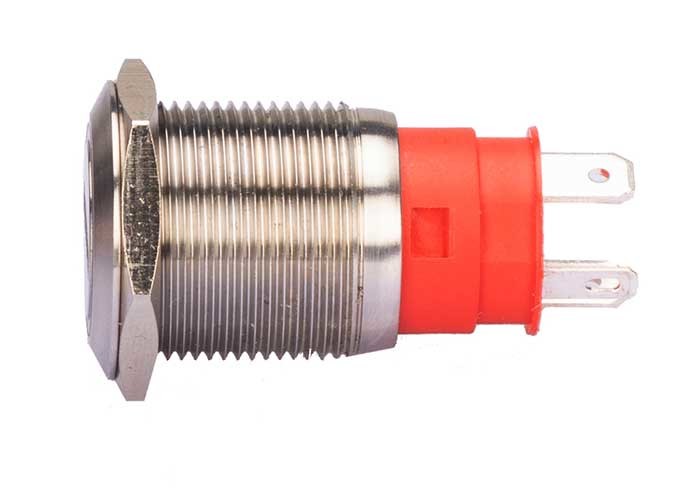

Product size reference:

Ip67 Momentary Latching Led Illuminated Push Button Switch Waterproof 19mm For Car 0



LED color reference:

Ip67 Momentary Latching Led Illuminated Push Button Switch Waterproof 19mm For Car 1



F&Q:

——Q: Do you have a guarantee of your product quality?

      A: We have a guarantee of one year.



——Q: Can you make the switch as our requirement?

      A: Yes, we can. We are professional switch manfacturer with over 20 years research experience.



——Q:Do you have a catalog? Can you send me the catalog to me for checking them ?

        A: Yes , We have product catalog.Please contact us on line or send an Email for sending the catalog.







About our company:





     Our company is a professional company engaged in the design, development, production, sales and service of button switch, focusing on the innovation and quality of button switch.The leading products are 8mm, 10mm, 12mm, 16mm, 19mm, 22mm, 25mm, 28mm, 30mm, 40mm series button switches and indicators.The types of luminescence with lights are: ring luminescence, single point luminescence, power symbol luminescence, ring home power symbol luminescence, other customized luminescence lights, open type: self-locking, self-duplexing.Waterproof grade can be large leather IP67 class.The highest explosion-proof performance can reach IK10 level.

     Our products are affordable, quality assurance, is your best choice.

     The company can develop and customize products according to customer requirements.
