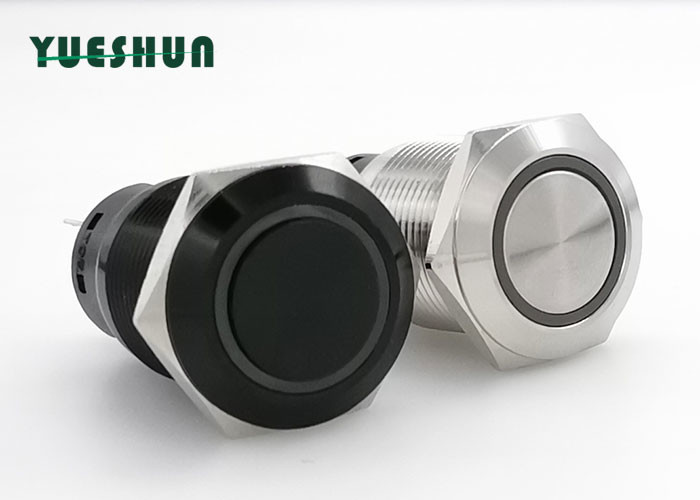

Stainless Steel Momentary Normal open 19mm Push Button Switch Waterproof Doorbell push button switch
F&Q
- Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem."
- Q:Do you have a catalog? Can you send me the catalog to me for checking them ?
A: Yes , We have product catalog.Please contact us on line or send an Email for sending the catalog.
Product Specification
| Mounting Hole | 19 mm |
| Max.Switch Rating | Ith:2A Ui:36V DC |
| Material | Body Material: Stainless Steel or Nickel Plated Brass |
| Button Material: Stainless Steel or Nickel Plated Brass | |
| Contact Material: Silver Alloy | |
| Base Material: PBT | |
| The Front Shape | High , Flat , Ball Round Head |
| Terminal Type | Screw Termlmal or Pin Termlmal |
| Switch Operation | Momentary |
| Contact Configuration | Normal Open or Normal Closed all can be customized. |
| Mounting panel thickness | 1-6 mm |
| Operation Distance | About 1.5 mm |
| Protection Level | IP65 |
| Operating Temp | -20℃～+55℃ |
