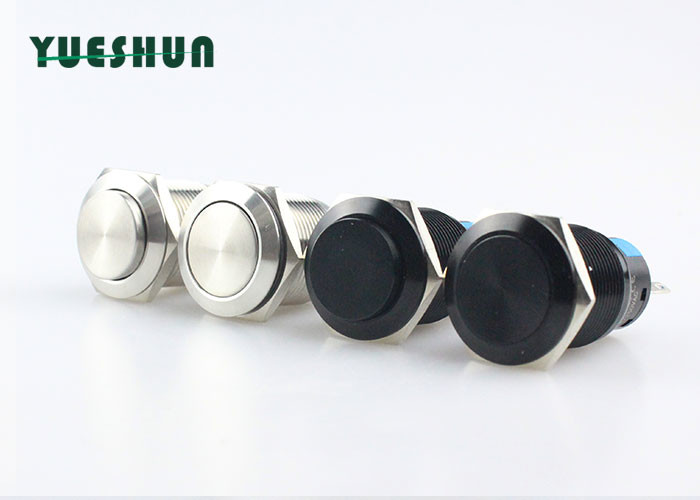

19mm High Round head illuminated Latching Push Button Switch Waterproof Momentary Push Button Switch
Product Description
- Please allow a bit error due to manual measurement. Please check as much as possible to make sure the item is the one that you need.
- Real color may slightly different from pictures due to many factors such as computer screen's resolution, brightness, contrast etc. Hope understanding.
- Each of our products is equipped with waterproof type 0 rubber ring, which is waterproof, but can not be used in water.Otherwise, the product will not work properly soon.
Product Specification
- Led Color : Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
- Led Voltage : 3V 6V 12V 24V 36V 110V 220V for choose.
- Led Type : Ring , Dot , Power , Angle eye , Trumpet etc. Logo customization are available.
| Model Number | LA19H illuminated Series |
| Mounting Hole | 19 mm |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Material |
Body Material: Stainless Steel/Nickel Plated Brass/Black Oxidized Aluminum |
|
Button Material: Stainless Steel/Black Oxidized Aluminum |
|
| Contact Material: Silver Alloy | |
| Base Material: PBT | |
| The Front Shape | High Round Head |
| Terminal Type | Pin Termlmal |
| Switch Operation | Latching or Momentary |
| Contact Configuration | 1NO + 1NC or 2NO + 2NC |
| Mounting panel thickness | 1-10 mm |
| Operation Distance | About 3.1 mm |
| Protection Level | IP67 |
| Operating Temp | -20℃～+55℃ |
